Product Overview

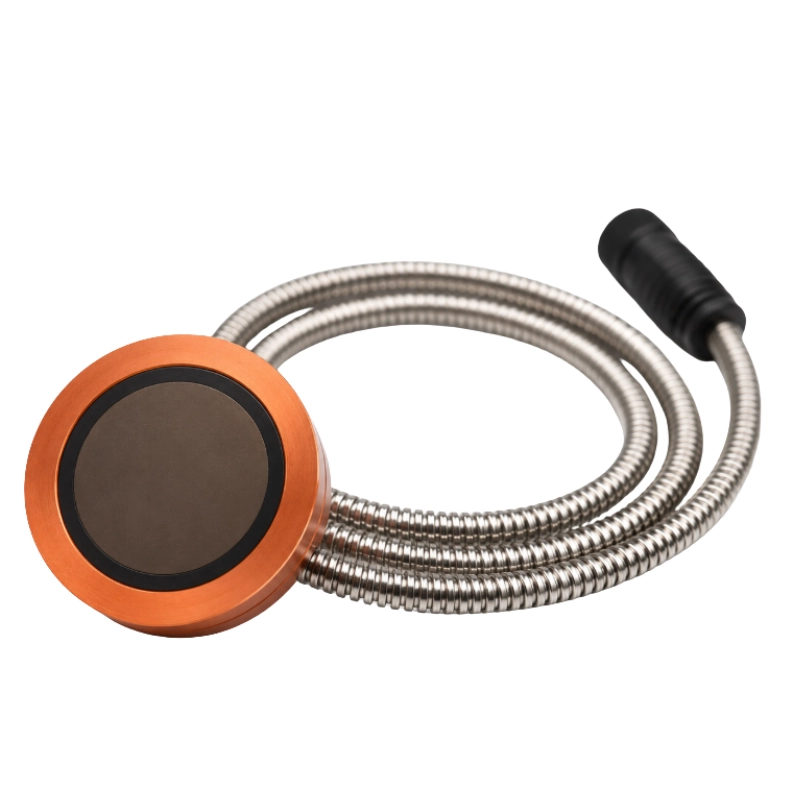

The BBDM-500KR5M is a 500 kHz ultrasonic transducer for liquid-level and distance measurement over a range of 0.02 to 5 m. It combines an 8° beam width with a blind zone below 20 mm for integration into tank, vessel and industrial-equipment level-measurement systems. The aluminum-alloy housing is supplied with a fixed cable and temperature-signal leads.
Key Features
- 500 kHz center operating frequency
- 0.02 to 5 m measurement range
- Blind zone below 20 mm
- 8° narrow beam
- Aluminum-alloy housing
- Integrated temperature-signal leads
Technical Specifications
| Parameter | Value |
|---|---|
| Center operating frequency | 500 kHz |
| Measurement range | 0.02 to 5 m |
| Blind zone | <20 mm |
| Beam width (-3 dB full angle) | 8° |
| Static capacitance | 1100 pF ±20% |
| Minimum parallel impedance | 150 Ω ±30% |
| Maximum operating voltage | <600 V, pulsed, 2% duty cycle |
| Operating temperature | -20 to 70°C |
| Protection rating | IP67 |
| Housing material | Aluminum alloy |
| Dimensions | Φ50 × 20 mm |
| Cable length | 1 m |
| Weight | 148 g |
Wiring
| Wire color | Function |
|---|---|
| Red | Transducer positive |
| Yellow | Transducer negative |
| Blue and green | Temperature signal |
Applications
- Tank and vessel level measurement
- Industrial liquid-distance measurement
- Level control and alarm systems
- OEM liquid-level measurement equipment
