Product Overview

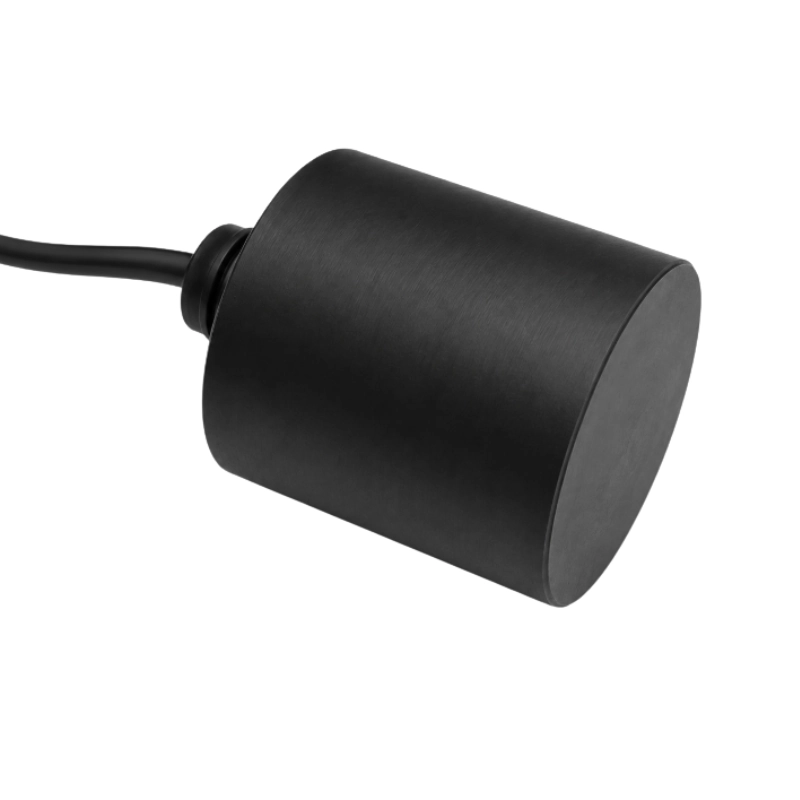

The BBDM-50KR8M measures air distance from 0.3 to 8 m and is available with 12° and 14° beam configurations. It supports industrial position sensing, proximity detection, traffic monitoring, robotic obstacle avoidance and medium-range measuring equipment.
Key Features
- Reference detection range of 0.3 to 8 m
- Choice of 12° or 14° beam angle
- Two compact housing configurations
- IP65 protection
- Operating temperature from -20 to 70°C
General Specifications
| Parameter | Specification |
|---|---|
| Center resonant frequency | 50 kHz ±2 kHz |
| Bandwidth | 4 kHz |
| Reference detection range | 0.3 to 8 m |
| Blind zone | <0.3 m |
| Sensitivity | ≥-78 dB |
| Electrostatic capacitance | 2000 pF ±20% |
| Maximum operating voltage | 1000 Vp-p at 2% pulse duty cycle |
| Operating temperature | -20 to 70°C |
| Storage temperature | -40 to 85°C |
| Protection rating | IP65 |
| Housing material | ABS or aluminum alloy |
| Cable length | 2 m standard; customizable |
| Weight | Approximately 200 g |
Available Parameters
| Configuration | Beam angle (-6 dB full angle) | Minimum parallel impedance | Dimensions |
|---|---|---|---|
| Narrow beam | 12° ±2° | 300 Ω ±30% | Φ57 × 70 mm |
| Wide beam | 14° ±2° | 250 Ω ±30% | Φ50 × 65 mm |
Applications
- Industrial position and proximity sensing
- Robotic and automated-equipment obstacle avoidance
- Traffic and vehicle detection
- Medium-range object detection
- Level and open-space distance measurement
Selection Information
For selection, specify the range, target size, required beam angle, installation space, operating temperature and cable length.
