Product Overview

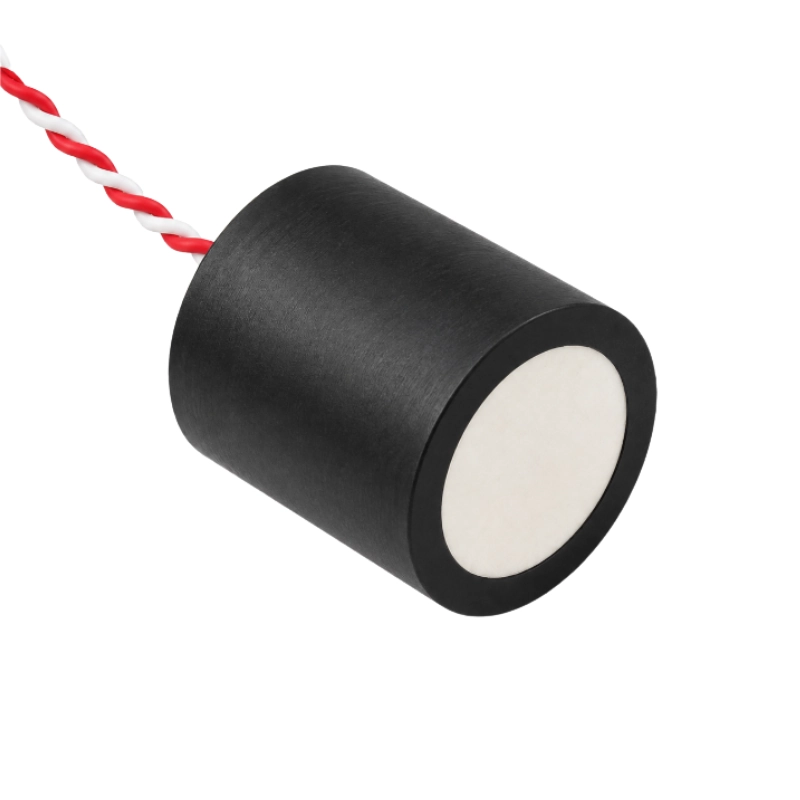

The BBDM-125KR3M measures air distance from 0.2 to 3 m in a compact 25 mm diameter housing. It is suitable for industrial position sensing, proximity detection, robotic obstacle avoidance, flow-measurement assemblies and compact OEM ranging equipment.
Key Features
- Reference detection range of 0.2 to 3 m
- 14° beam angle
- Compact Φ25 × 25 mm construction
- IP65 protection
- Operating temperature from -20 to 80°C
Technical Specifications
| Parameter | Specification |
|---|---|
| Center frequency | 125 kHz |
| Bandwidth | ±4% |
| Reference detection range | 0.2 to 3 m |
| Blind zone | <0.2 m |
| Beam angle (-3 dB) | 14° ±2° |
| Electrostatic capacitance | 1000 pF ±200 pF |
| Minimum parallel impedance | 300 Ω ±30% |
| Maximum operating voltage | <800 V at 2% pulse duty cycle |
| Operating temperature | -20 to 80°C |
| Protection rating | IP65 |
| Dimensions | Φ25 × 25 mm |
| Housing material | ABS or aluminum alloy |
| Cable length | 2 m standard; customizable |
| Weight | Approximately 20 g |
Applications
- Industrial position and proximity sensing
- Robotic and automated-equipment obstacle avoidance
- Distance measurement in compact equipment
- Integration into flow-rate and flow-velocity measurement systems
- Vehicle and traffic detection
Selection Information
For selection, specify the measuring range, target size, installation space, operating temperature, drive voltage and cable length.
