Product Overview

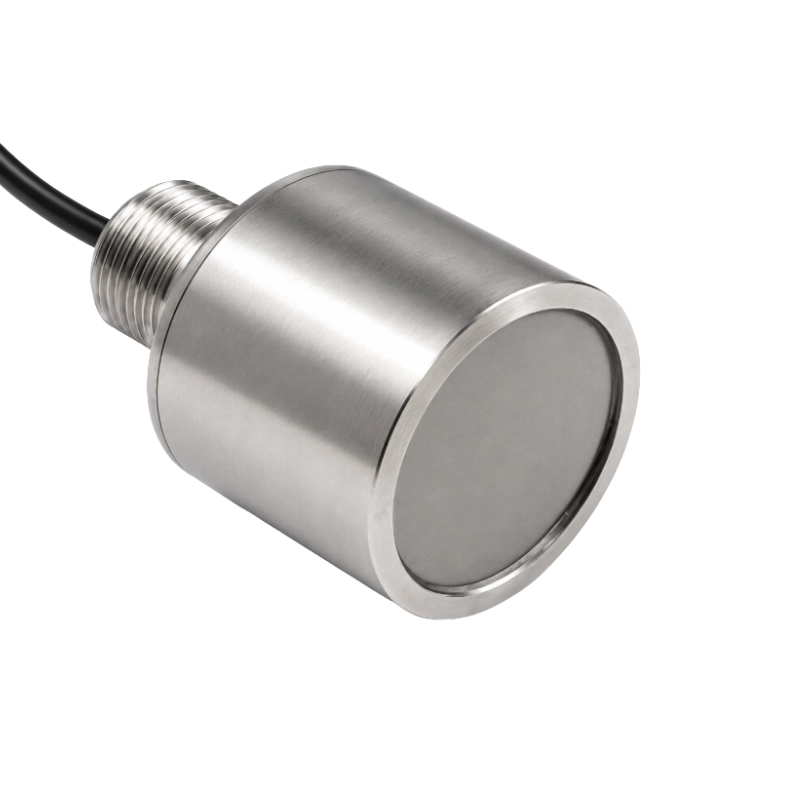

The BBDM-40K-UW is a 40 kHz ultrasonic transducer for underwater depth and distance measurement in liquid media. It is suitable for echo ranging and underwater target detection in rivers, lakes, pools, tanks and industrial liquid environments. Its relatively low operating frequency supports acoustic propagation in water and provides a wide measurement beam.
Key Features
- 40 kHz center operating frequency
- 50° beam width
- 50 to 200 W power range
- Acoustic measurement in liquid media
- G1″ threaded mounting structure
Technical Specifications
| Parameter | Value |
|---|---|
| Center operating frequency | 40 ± 2 kHz |
| Piezoelectric material | PZT-4 or PZT-8 |
| Beam width (-3 dB) | 50° |
| Parallel impedance in water | 2 kΩ ±30% |
| Static capacitance | 2700 pF ±15% |
| Power | 50 to 200 W |
| Mounting thread | G1″ |
| Outside diameter | Φ65 mm |
| Overall height | 86 mm |
Applications
- Depth measurement in rivers, lakes and pools
- Liquid-distance measurement in tanks and vessels
- Underwater target and obstacle detection
- Ultrasonic echo measurement in industrial liquids
