Product Overview

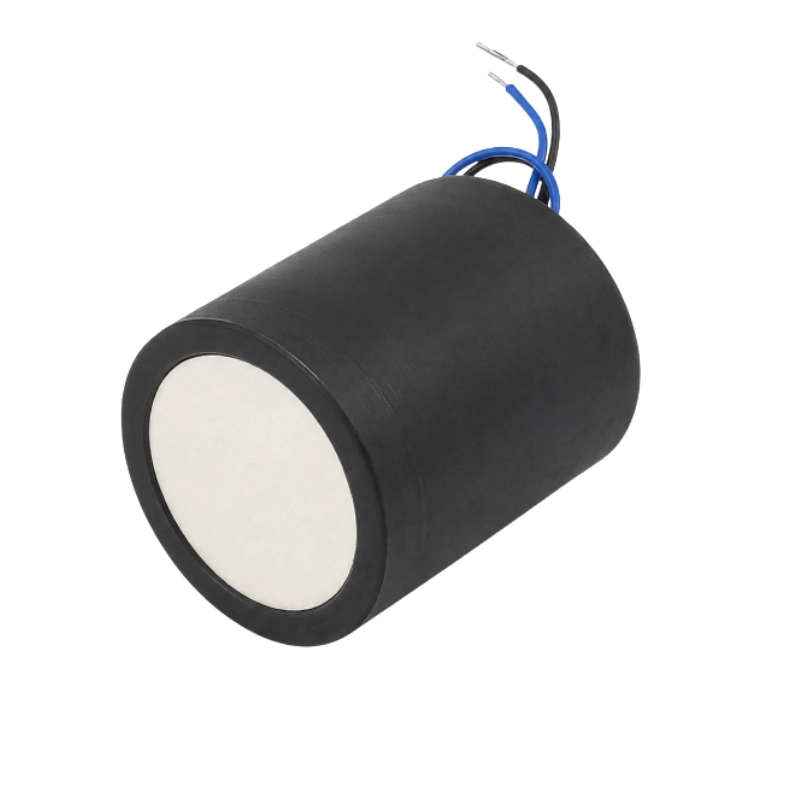

The BBDM-40KR12M is a 40 kHz ultrasonic transducer for air-distance measurement from 0.35 to 12 m. Long-range, standard-beam and narrow-beam configurations are available for position sensing, proximity detection, vehicle monitoring, robotic obstacle avoidance and industrial distance measurement.
Key Features
- Reference detection distance up to 12 m
- 12°, 14° and 15° beam options
- IP65 or IP66 protection configurations
- Multiple cylindrical housing sizes
- Optional integrated thermistor
General Electrical Specifications
| Parameter | Specification |
|---|---|
| Center resonant frequency | 40 kHz ±2 kHz |
| Bandwidth | 3 kHz |
| Sensitivity | ≥-76 dB |
| Electrostatic capacitance | 3000 pF ±20% |
| Minimum parallel impedance | 180 Ω ±30% |
| Maximum operating voltage | 1800 Vp-p at 2% pulse duty cycle |
| Operating temperature | -20 to 70°C |
| Storage temperature | -40 to 85°C |
Available Configurations
| Configuration | Reference range | Blind zone | Beam angle | Protection | Dimensions | Additional feature |
|---|---|---|---|---|---|---|
| Long-range | 0.4 to 12 m | <0.4 m | 15° ±2° | IP66 | Φ62 × 63 mm | Compact long-range housing |
| Standard | 0.35 to 10 m | <0.35 m | 14° ±2° | IP65 | Φ68 × 95 mm | Thermistor available |
| Narrow-beam | 0.35 to 10 m | <0.35 m | 12° ±2° | IP65 | Φ62 × 72 mm | Reduced sensing area |
Applications
- Industrial position and proximity detection
- Vehicle and traffic monitoring
- Robotic and mobile-equipment obstacle avoidance
- Warehouse, level and open-space distance measurement
- OEM equipment requiring selectable beam coverage
Selection Information
For selection, specify the range, target size, required beam angle, protection rating, temperature-sensing requirement and cable length.
