Product Overview

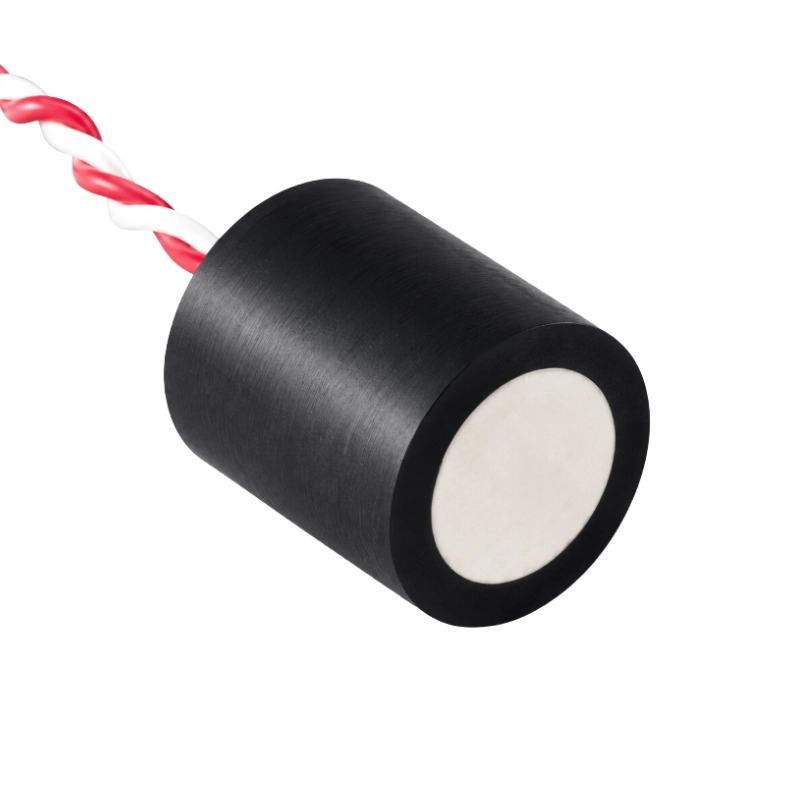

The BBDM-200KR2M measures air distance from 0.1 to 2 m. Narrow-beam and wide-beam configurations are available for different target sizes, installation spaces and coverage requirements. It is suitable for industrial position sensing, proximity detection, automated-equipment obstacle avoidance and compact OEM ranging systems.
Key Features
- Reference detection range of 0.1 to 2 m
- Choice of 7° or 14° beam angle
- 0.1 m blind zone
- IP65 protection
- Multiple housing and connection options
Narrow-Beam Configuration
| Parameter | Specification |
|---|---|
| Center frequency | 200 kHz ±4% |
| Bandwidth | 16 kHz |
| Reference detection range | 0.1 to 2 m |
| Blind zone | <0.1 m |
| Beam angle | 7° ±2° |
| Transmit/receive sensitivity | ≥-60 dB at 200 Vp-p, 50 cycles and 200 mm separation |
| Electrostatic capacitance | 400 pF ±20% |
| Minimum parallel impedance | 600 Ω ±30% |
| Maximum operating voltage | <500 V at 2% pulse duty cycle |
| Operating temperature | -20 to 70°C |
| Protection rating | IP65 |
| Housing material | ABS or aluminum alloy |
Wide-Beam Configuration
| Parameter | Specification |
|---|---|
| Center frequency | 200 kHz |
| Bandwidth | ±4% |
| Reference detection range | 0.1 to 2 m |
| Blind zone | <0.1 m |
| Beam angle | 14° ±2° |
| Electrostatic capacitance | 500 pF ±100 pF |
| Minimum parallel impedance | 250 Ω ±30% |
| Maximum operating voltage | <500 V at 2% pulse duty cycle |
| Operating temperature | -20 to 80°C |
| Protection rating | IP65 |
| Dimensions | Φ16 × 20 mm |
| Cable length | 200 mm standard; customizable |
| Weight | Approximately 10 g |
Applications
- Industrial position and proximity sensing
- Robotic and automated-equipment obstacle avoidance
- Distance measurement in compact equipment
- Integration into level and height measurement systems
- OEM ranging modules
Selection Information
For selection, specify the measuring range, target size, required beam angle, installation space, operating temperature, drive voltage and connection method.
