Product Overview

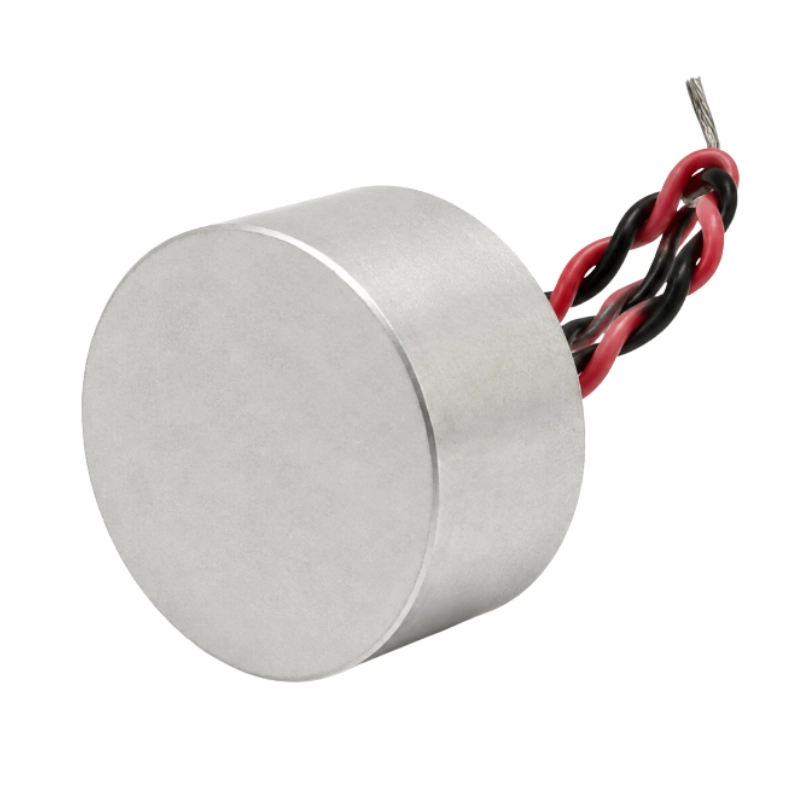

The BBDM-58KR3M is a 58 kHz ultrasonic transducer for air-distance measurement with a reference reflection range of 0.2 to 3 m. Its waterproof construction supports transmit/receive-compatible operation and provides 70° horizontal and 30° vertical directivity for parking assistance, proximity sensing, obstacle detection and OEM ranging systems.
Key Features
- 58 kHz center frequency
- Reference reflection range of 0.2 to 3 m
- Transmit/receive-compatible operation
- 70° horizontal and 30° vertical directivity
- Reference resolution of 10 mm
- Waterproof construction with aluminum housing
- Operating-temperature configuration from -40 to 80°C
Technical Specifications
| Parameter | Specification |
|---|---|
| Center frequency | 58 kHz ±1 kHz |
| Reference detection range | 0.2 to 3 m (reflection measurement) |
| Function | Transmit/receive compatible |
| Sound pressure level | ≥100 dB |
| Receiving sensitivity | ≥-74 dB |
| Beam angle (-6 dB) | 70° horizontal; 30° ±15° vertical |
| Reference resolution | 10 mm |
| Electrostatic capacitance | 1600 pF ±20% |
| Maximum operating voltage | 150 Vp-p at 2% pulse duty cycle |
| Ring-down time | ≤1.2 ms |
| Operating temperature | -40 to 80°C |
| Storage temperature | -40 to 85°C |
| Housing material | Aluminum |
| Construction | Waterproof type |
Applications
- Parking assistance and vehicle proximity detection
- Obstacle and object-presence sensing
- Robotic and automated-equipment obstacle avoidance
- Air-distance and position measurement
- OEM ultrasonic ranging systems
Operating Information
The product is designed for use in air and is not intended for acoustic measurement in liquids. Actual detection distance and resolution depend on drive conditions, receiver gain, target size, target material, installation and ambient temperature.
Selection Information
For selection, specify the target size, working distance, installation space, operating temperature, drive voltage and connection requirements.
