Product Overview

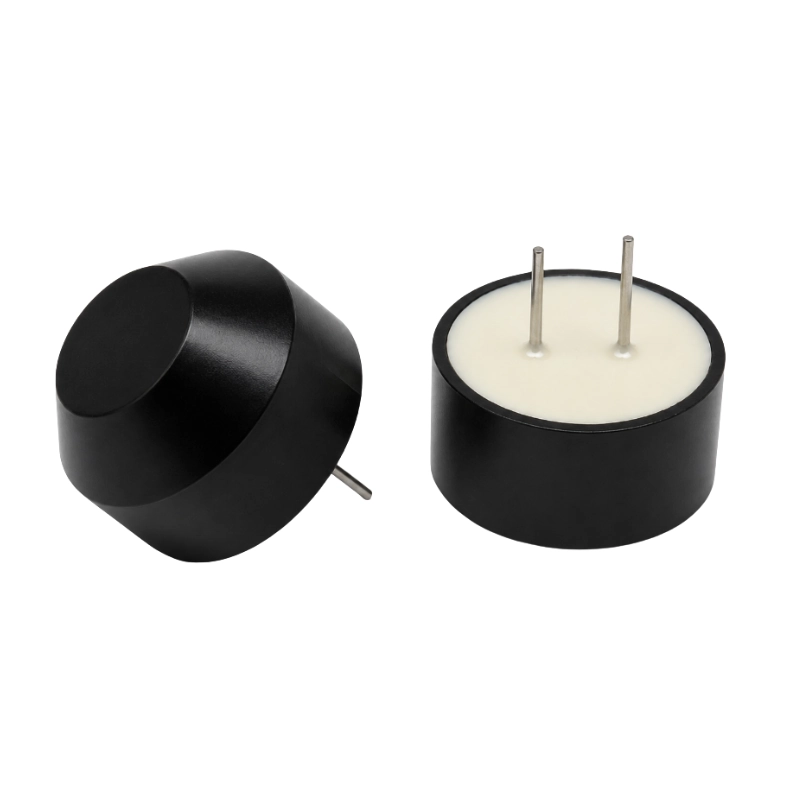

The BBDM-40K is a compact 40 kHz ultrasonic transducer for air-distance measurement, proximity sensing and obstacle detection. Multiple waterproof housings, sizes and beam-angle configurations are available, with transmitter, receiver and transmit/receive-compatible versions for integration into parking assistance, outdoor sensing, robotics and industrial automation systems.
Key Features
- 40 kHz center frequency
- Multiple waterproof housing sizes
- Beam configurations from 30° to 80°
- Transmitter, receiver and transmit/receive-compatible versions
- Pin or cable connection
- Non-contact sensing in air
Available Configurations
| Parameter | Φ14 mm configuration | Φ16 mm configuration | Φ18 mm configuration | Φ25 mm configuration |
|---|---|---|---|---|
| Center frequency | 40 kHz ±1 kHz | 40 kHz ±1 kHz | 40 kHz ±1 kHz | 40 kHz ±1 kHz |
| Function | Transmitter or receiver | Transmitter, receiver or dual-use | Transmitter, receiver or dual-use | Transmitter, receiver or dual-use |
| Sound pressure level | ≥105 dB | ≥104 dB | ≥103 dB | ≥117 dB |
| Receiving sensitivity | ≥-74 dB | ≥-73 dB | ≥-75 dB | ≥-65 dB |
| Beam angle (-6 dB) | 80° ±15° | 40° | 70° ±15° | 30° |
| Electrostatic capacitance | 1900 pF ±20% | 1800 pF ±20% | 1800 to 1900 pF ±20% | 2200 pF ±20% |
| Maximum operating voltage | 120 Vp-p | 160 Vp-p | 120 Vp-p | 160 Vp-p |
| Operating temperature | -20 to 60°C | -20 to 70°C | -30 to 80°C | -20 to 70°C |
| Housing material | Aluminum | ABS | ABS | Aluminum |
| Connection | 2 pins | 2 pins | 2 pins | 2 pins or cable |
The Φ18 mm and Φ25 mm configurations have a maximum ring-down time of 1.2 ms. The Φ18 mm configuration is rated IP66.
Applications
- Parking assistance and obstacle detection
- Outdoor proximity and presence sensing
- Robotic and automated-equipment obstacle avoidance
- Industrial position and presence detection
- OEM ultrasonic ranging systems
Operating Information
The product is designed for use in air and is not intended for acoustic measurement in liquids. Waterproof capability and operating temperature depend on the selected configuration. Keep the front vibrating surface free from rigid clamping during installation to preserve acoustic performance.
Selection Information
For selection, specify the required size, transmitter/receiver function, beam angle, target size, working distance, ambient temperature and connection method.
