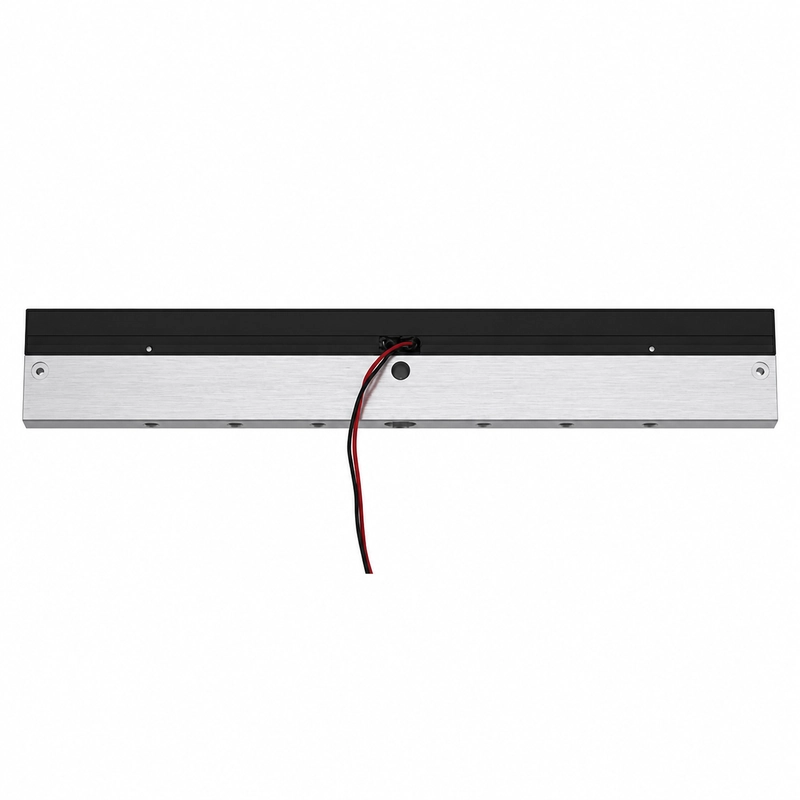

Scanning sonar transducers from 650 kHz to 2.25 MHz
The BBUA-SS series supports scanning sonar, underwater profile measurement, short-range underwater imaging and submerged-target search. Its five frequency configurations have distinct beam, electrical and operating characteristics, so every value below remains bound to its stated frequency.
Core frequency configurations
| Center frequency | Minimum impedance | Capacitance at 1 kHz | Peak voltage | Half-power beam angle | Operating temperature |
|---|---|---|---|---|---|
| 650 kHz ±5% | 150 Ω ±20% | 1,200 pF ±20% | <330 Vpp | 0.83° ±10% | -20 to +60°C |
| 750 kHz ±5% | 200 Ω ±20% | 1,100 pF ±20% | <285 Vpp | 2.3° ±10% | -20 to +60°C |
| 1.2 MHz ±5% | 75 Ω ±20% | 550 pF ±20% | <200 Vpp | 2.3° ±10% | -20 to +60°C |
| 1.5 MHz ±5% | 6 Ω ±20% | 4,500 pF ±20% | <150 Vpp | 2° ±10% | -40 to +80°C |
| 2.25 MHz ±5% | 5 Ω ±20% | 5,800 pF ±20% | <95 Vpp | 1.5° ±10% | -40 to +80°C |
Confirmed bandwidth and range
| Center frequency | Bandwidth at -3 dB |
|---|---|
| 650 kHz | ±20% |
| 750 kHz | ±20% |
| 2.25 MHz | ±20% |
| Center frequency | Reference range |
|---|---|
| 650 kHz | 0.30 to 120 m |
| 750 kHz | 0.30 to 10 m |
Pressure and construction data
| Center frequency | Pressure rating | Protection rating |
|---|---|---|
| 1.5 MHz | ≤0.3 MPa | IP68 |
| 2.25 MHz | 0.3 MPa | IP68 |
The documented housing material is aluminum for the 650 kHz, 750 kHz and 1.2 MHz configurations, and composite material for the 1.5 MHz configuration. The independently specified weight of the 1.2 MHz configuration is 10 g ±5%.
Documented applications
- Scanning sonar
- Underwater profile measurement
- Short-range underwater imaging
- Underwater target search
