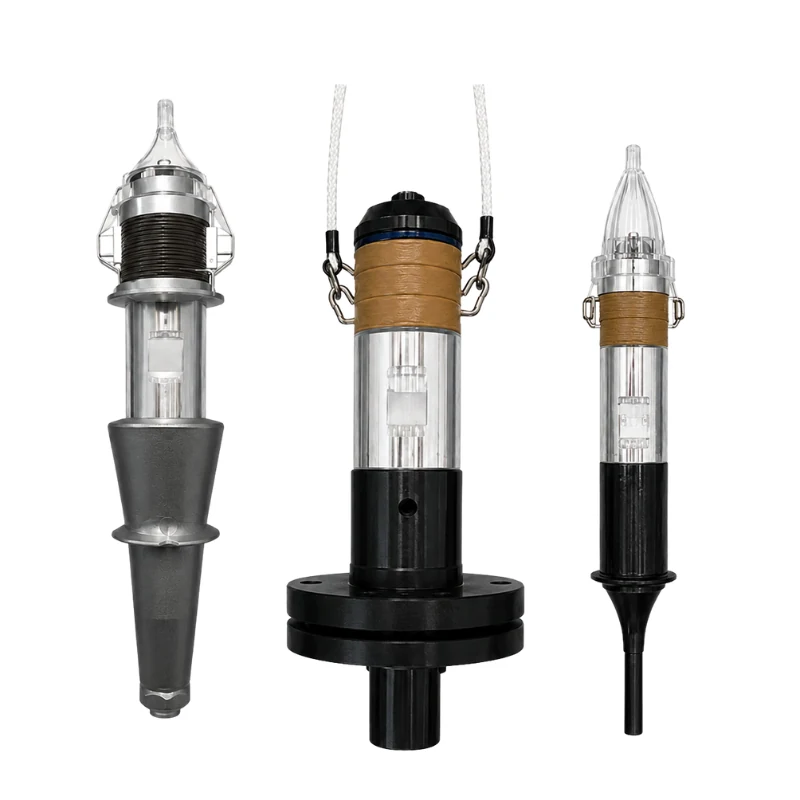

BBWD-20KP2000 Product Overview
The BBWD-20KP2000 is a piezoelectric transducer for industrial ultrasonic welding equipment. With a nominal frequency of 20 kHz and a rated power of 2000 W, it converts the high-frequency electrical energy supplied by an ultrasonic generator into mechanical vibration. A booster and sonotrode then transmit this vibration to the weld area.
The product range includes nominal frequencies of 15, 18, 20, 28, and 35 kHz and rated power levels from 300 to 2600 W. Selection should be based on the generator frequency, required power, and available installation space.
Main Specifications
| Parameter | Value |
|---|---|
| Model | BBWD-20KP2000 |
| Nominal frequency | 20 kHz |
| Resonant frequency | 19.8 ± 0.3 kHz |
| Static capacitance | 17000–18000 pF |
| Resonant impedance | ≤10 Ω |
| Rated power | 2000 W |
| Diameter | 50 mm |
| Height | 112 mm |
Product Features
- Designed for industrial ultrasonic welding equipment
- Bolt-clamped piezoelectric construction
- Compatible with ultrasonic generators, boosters, and sonotrodes
- Multiple frequency and power configurations available
- Different diameters and heights for equipment integration
Available Configurations
| Model | Resonant frequency | Static capacitance | Resonant impedance | Rated power | Diameter | Height |
|---|---|---|---|---|---|---|
| BBWD-15KP2600 | 14.8 ± 0.3 kHz | 9000–10000 pF | ≤15 Ω | 2600 W | 60 mm | 163 mm |
| BBWD-15KP2600 | 14.8 ± 0.3 kHz | 12500–13500 pF | ≤15 Ω | 2600 W | 60 mm | 163 mm |
| BBWD-18KP2000 | 17.8 ± 0.3 kHz | 17000–18000 pF | ≤10 Ω | 2000 W | 50 mm | 130 mm |
| BBWD-20KP2000 | 19.8 ± 0.3 kHz | 17000–18000 pF | ≤10 Ω | 2000 W | 50 mm | 112 mm |
| BBWD-20KP1500 | 19.8 ± 0.3 kHz | 10500–11000 pF | ≤10 Ω | 1500 W | 50 mm | 117 mm |
| BBWD-20KP1500 | 19.8 ± 0.3 kHz | 10500–11000 pF | ≤10 Ω | 1500 W | 50 mm | 125 mm |
| BBWD-20KP1500 | 19.8 ± 0.3 kHz | 13500–14000 pF | ≤10 Ω | 1500 W | 50 mm | 130 mm |
| BBWD-28KP800 | 27.8 ± 0.3 kHz | 7200–8200 pF | ≤10 Ω | 800 W | 38 mm | 92 mm |
| BBWD-28KP500 | 27.8 ± 0.3 kHz | 3900–4300 pF | ≤20 Ω | 500 W | 25 mm | 88 mm |
| BBWD-35KP300 | 34.8 ± 0.3 kHz | 1900–2100 pF | ≤30 Ω | 300 W | 25 mm | 70 mm |
Typical Applications
- Ultrasonic welding of plastic components
- Welding of nonwoven and synthetic materials
- Packaging, sealing, and industrial assembly
- Ultrasonic cutting and related industrial processing equipment
- Automated ultrasonic welding systems
Selection Considerations
The nominal frequency of the transducer must match the ultrasonic generator, booster, and sonotrode. The required power, installation space, load conditions, and material being processed should also be confirmed before selecting the final configuration.
