Product overview

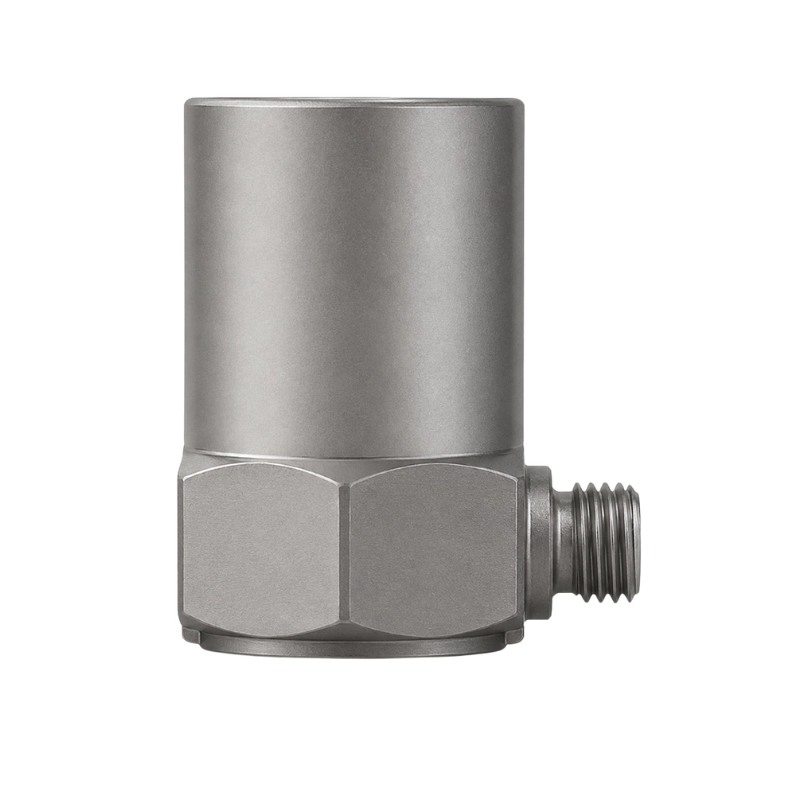

The BBVM-RS100 is a single-axis IEPE piezoelectric accelerometer with a side-exit connection, designed for vibration measurements where overhead clearance is limited or the cable must run parallel to the mounting surface. It combines a piezoelectric ceramic sensing element, a shear-mode design, a sealed metal housing, and integrated signal conditioning. The standard model provides a sensitivity of 100 mV/g and a measurement range of ±50 g, with additional high-g, standard-range, and high-sensitivity configurations available.
Key features
- Side-exit connection for low-clearance installations
- Integrated IEPE signal conditioning
- Standard sensitivity of 100 mV/g
- Standard measurement range of ±50 g
- Frequency response up to 12 kHz
- M5 mounting and output connections
- Suitable for long-distance signal transmission
- Multiple sensitivity and range options
Available sensitivity and range options
| Available model | Sensitivity | Measurement range | Frequency response |
|---|---|---|---|
| BBVM-RS10 | 10 mV/g | ±500 g | 1–10,000 Hz |
| BBVM-RS20 | 20 mV/g | ±250 g | 1–10,000 Hz |
| BBVM-RS25 | 25 mV/g | ±200 g | 1–10,000 Hz |
| BBVM-RS50 | 50 mV/g | ±100 g | 0.5–12,000 Hz |
| BBVM-RS100 | 100 mV/g | ±50 g | 0.3–12,000 Hz |
| BBVM-RS500 | 500 mV/g | ±10 g | 0.2–8,000 Hz |
| BBVM-RS1000 | 1,000 mV/g | ±5 g | 0.2–8,000 Hz |
Standard-model performance specifications
| Parameter | Value |
|---|---|
| Measurement | Vibration acceleration |
| Sensitivity | 100 mV/g |
| Measurement range | ±50 g |
| Frequency response | 0.3–12,000 Hz |
| Transverse sensitivity | ≤5%; ≤3% typical |
| Discharge time constant | ≥0.2 s |
Electrical specifications
| Parameter | Value |
|---|---|
| Sensor type | IEPE |
| Supply voltage | 18–30 VDC |
| Constant-current excitation | 2–10 mA |
| Typical operating condition | 24 VDC, 4 mA |
| Bias voltage | 8–12 VDC |
| Output impedance | <100 Ω |
| Maximum signal transmission distance | 300 m |
Mechanical and environmental specifications
| Parameter | Value |
|---|---|
| Sensing design | Shear mode |
| Output direction | Side exit |
| Standard mounting thread | M5 |
| Standard-model weight | 32 g |
| Recommended mounting torque | Approximately 20 kgf·cm (approximately 2.0 N·m) |
| Operating temperature | −40 to +120 °C |
| Housing construction | Fully enclosed metal housing |
Standard accessories
- Sensor certificate with frequency-response curve
- One 1.5 m standard output cable
- One M5 connecting bolt
- Product packaging box
Optional mounting accessories
- Magnetic mounting base
- Insulated mounting base
Typical applications
- Equipment vibration monitoring where overhead clearance is limited
- Condition monitoring of motors, pumps, fans, and gearboxes
- Vibration measurement of machine housings and structural components
- High-g shock and transient-vibration testing
- High-sensitivity, low-level vibration measurement
