Product Overview

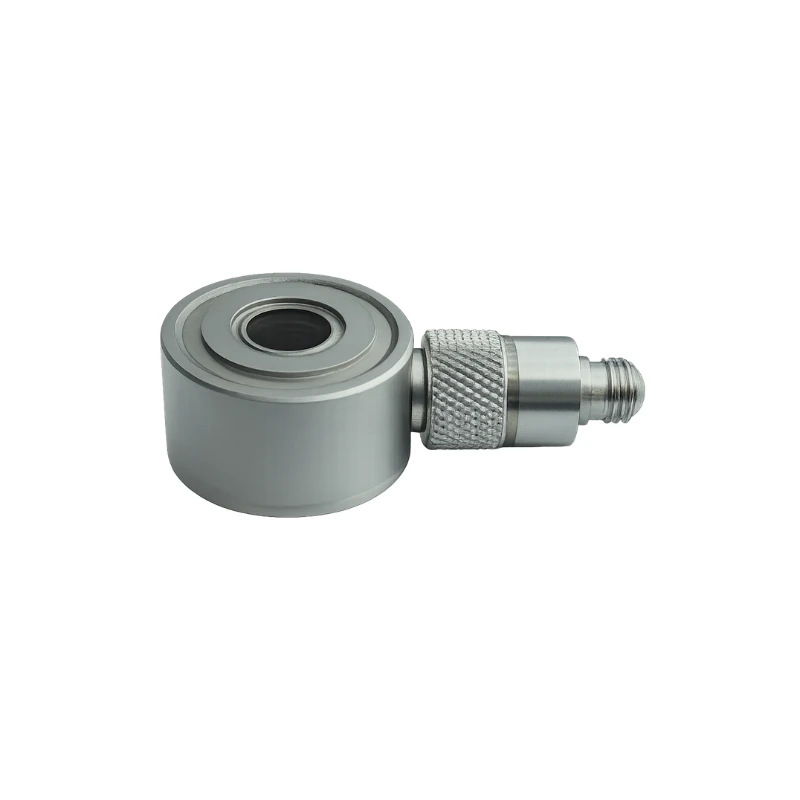

The BBVM-FS10 is an ICP piezoelectric force sensor designed for vibration and dynamic testing. It measures dynamic tensile, compressive, and short-duration impact forces. Its center through-hole construction allows installation between a vibration exciter, mechanical structure, and test fixture for dynamic load measurement.
Used with a vibration exciter, the sensor supports excitation-force measurement and control. It can also be combined with acceleration or velocity sensors for mechanical impedance testing, modal testing, and structural dynamic analysis.
Key Features
- Measures dynamic tension, compression, and impact forces
- ICP piezoelectric output for dynamic signal acquisition
- Approximate sensitivity of 10 mV/N for the documented 500 N configuration
- Frequency response from 1 to 10000 Hz
- Center through-hole mounting
- Seven available ranges from 500 N to 250 kN
- Suitable for shaker testing and multi-sensor vibration measurement systems
Main Specifications
The supplied main specification identifies the ±500 N configuration with the following performance and dimensions.
| Parameter | Value |
|---|---|
| Product type | ICP dynamic force sensor |
| Measured quantity | Dynamic tension, compression, and impact force |
| Measurement range | ±500 N |
| Sensitivity | Approx. 10 mV/N |
| Frequency response | 1–10000 Hz |
| Natural frequency | 70 kHz |
| Linearity | ≤1% F.S. |
| Weight | 24 g |
| Outer diameter | Φ18 mm |
| Center-hole diameter | Φ6 mm |
| Height | 10.5 mm |
Available Ranges and Dimensions
Seven force ranges are available. The housing and mounting dimensions vary with the selected range.
| Measurement range | Outer diameter | Center-hole diameter | Height |
|---|---|---|---|
| 500 N | Φ18 mm | Φ6 mm | 10.5 mm |
| 2 kN | Φ18 mm | Φ6 mm | 10.5 mm |
| 5 kN | Φ18 mm | Φ6 mm | 10.5 mm |
| 10 kN | Φ26 mm | Φ8 mm | 12.5 mm |
| 50 kN | Φ26 mm | Φ8 mm | 12.5 mm |
| 100 kN | Φ46 mm | Φ20 mm | 13 mm |
| 250 kN | Φ60 mm | Φ26 mm | 17 mm |
Operating Principle
When a dynamic load is applied, the internal piezoelectric element generates an electrical charge proportional to the force. Integrated ICP electronics convert this charge into a low-impedance voltage output for transmission, recording, and analysis through a signal conditioner and data acquisition system.
Typical Applications
- Impact-force testing and modal testing
- Vibration-exciter force measurement and control
- Dynamic tension and compression measurement on mechanical structures
- Mechanical impedance and transfer-function testing
- Vibration test rigs and structural dynamics testing
- Modal analysis combined with accelerometers
Compatible Equipment
- ICP signal conditioner
- Dynamic data acquisition system
- M5-to-BNC low-noise connection cable
- Vibration exciter and vibration control system
Installation Requirements
- Keep the mounting surfaces flat and clean to ensure uniform force transmission.
- Apply suitable preload through the center mounting hole and avoid uneven loading of the housing.
- Align the sensor axis with the direction of the measured force.
- Do not exceed the selected measurement range during testing.
- Secure the connection cable to minimize cable-motion effects on the dynamic signal.
