Product overview

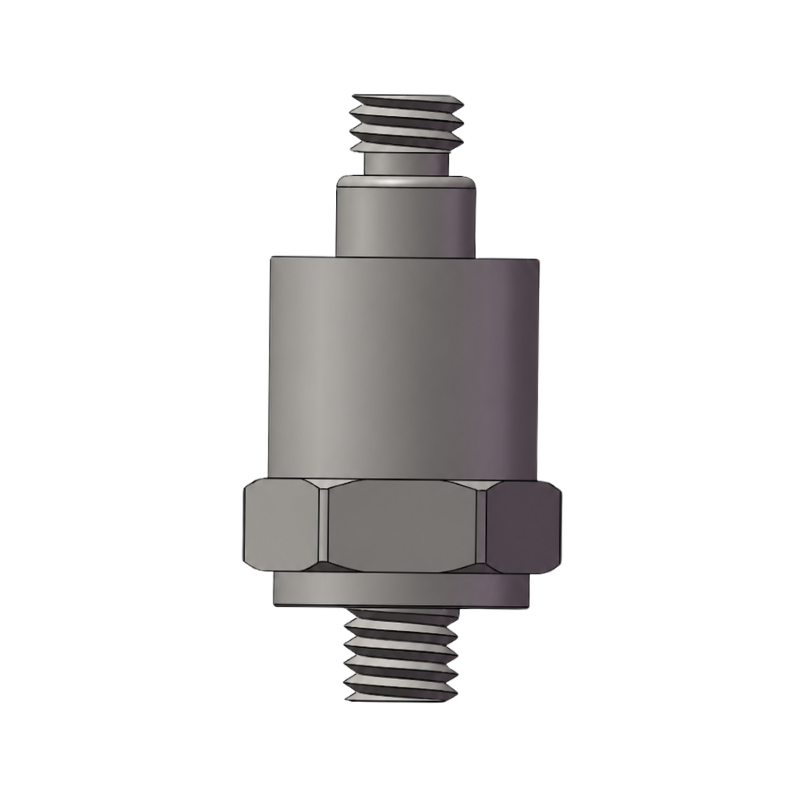

The BBVM-AS100 is a top-exit IEPE piezoelectric accelerometer designed for industrial vibration and shock measurement. It combines a PZT sensing element, a shear-mode design, a hermetically sealed stainless-steel housing, and integrated signal conditioning for direct connection to constant-current vibration acquisition and monitoring equipment. The standard model provides a sensitivity of 100 mV/g and a measurement range of ±50 g. Available configurations extend from high-g shock measurement to high-sensitivity, low-level vibration measurement.
Key features
- Integrated IEPE signal conditioning
- Top-exit construction
- Standard sensitivity of 100 mV/g
- Standard measurement range of ±50 g
- Frequency response up to 15 kHz
- Shear-mode piezoelectric design
- Hermetically sealed 316L stainless-steel housing
- Suitable for long-distance signal transmission
- Multiple sensitivity, range, and connection options
Available sensitivity and range options
| Available model | Sensitivity | Measurement range | Frequency response |
|---|---|---|---|
| BBVM-AS1 | 1 mV/g | ±5,000 g | 1–15,000 Hz |
| BBVM-AS5 | 5 mV/g | ±1,000 g | 1–15,000 Hz |
| BBVM-AS10 | 10 mV/g | ±500 g | 1–15,000 Hz |
| BBVM-AS50 | 50 mV/g | ±100 g | 0.5–15,000 Hz |
| BBVM-AS100 | 100 mV/g | ±50 g | 0.3–15,000 Hz |
| BBVM-AS500 | 500 mV/g | ±10 g | 0.3–9,000 Hz |
| BBVM-AS1000 | 1,000 mV/g | ±5 g | 0.2–8,000 Hz |
| BBVM-AS2000 | 2,000 mV/g | ±2.5 g | 0.2–3,000 Hz |
| BBVM-AS5000 | 5,000 mV/g | ±1 g | 0.2–1,500 Hz |
Standard-model performance specifications
| Parameter | Value |
|---|---|
| Measurement | Vibration acceleration |
| Sensitivity | 100 mV/g, ±10% at 25 °C |
| Measurement range | ±50 g peak |
| Frequency response | 0.3–15,000 Hz (±3 dB) |
| Reference frequency range | 1–10,000 Hz (±10%) |
| Mounted resonant frequency | 27 kHz |
| Transverse sensitivity | ≤5%; ≤3% typical |
| Non-linearity | ≤1% |
| Settling time | <2 s |
| Spectral noise at 100 Hz | 4 μg/√Hz |
| Maximum shock | 2,000 g |
Electrical specifications
| Parameter | Value |
|---|---|
| Sensor type | IEPE |
| Supply voltage | 18–30 VDC |
| Constant-current excitation | 2–10 mA |
| Typical operating condition | 24 VDC, 4 mA |
| Bias voltage | 8–12 VDC |
| Output impedance | <100 Ω |
Mechanical and environmental specifications
| Parameter | Value |
|---|---|
| Sensing element | PZT ceramic |
| Sensing design | Shear mode |
| Housing material | 316L stainless steel |
| Sealing | Welded, hermetic |
| Weight | 31 g |
| Standard connection and mounting thread | 10-32 UNF |
| Dimensions | 31 mm overall height; 16 mm housing width; 14 mm base diameter |
| Mounting torque | 113–226 N·cm (1.13–2.26 N·m) |
| Operating temperature | −40 to +120 °C |
Available connections and output formats
- 10-32 connector
- M5 connector
- Top-exit integral cable
- Top-exit armored integral cable
Standard accessories
- Sensor certificate with frequency-response curve
- Standard output cable
- Mounting screw
- Product packaging box
Typical applications
- Vibration monitoring of motors, fans, pumps, and gearboxes
- Industrial condition monitoring and fault diagnostics
- Vibration measurement of machine housings and structural components
- High-sensitivity, low-level vibration testing
- Laboratory and field vibration acquisition
