Product Overview

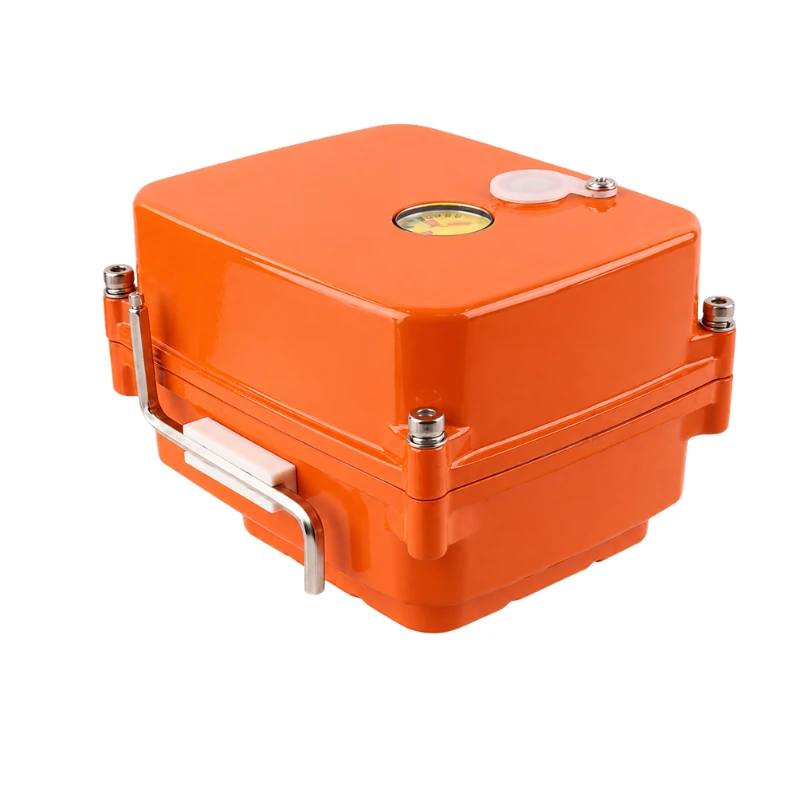

The BBVA-ON is designed for automatic opening and closing of ball valves, butterfly valves, diaphragm valves, and other 0–90° rotary valves. With output torque options from 10 to 200 N·m, it can be configured for small precision valves, general industrial valves, and valves requiring higher operating torque.
The actuator accepts active or passive on/off control signals and uses a DC brushless motor with metal gear transmission. Plastic or aluminum-alloy housings, multiple output-shaft sizes, operating times, and feedback functions are available to suit valve torque, installation space, power supply, and control requirements.
Key Features
- Output torque range from 10 to 200 N·m
- Standard 0–90° rotary operation
- Active and passive on/off signal options
- DC 24 V or AC 220 V power supply
- DC brushless motor with metal gear transmission
- Optional open and closed position signals
- Stall and overload protection
- IP65 protection
- Optional power-failure reset, RS485, wireless, and 4G control
- Multi-turn and fast-acting options for selected configurations
Typical Applications
- Motorized two-way, three-way, and four-way ball valves
- Motorized butterfly and diaphragm valves
- Stainless-steel, brass, and UPVC valves
- Automatic opening and closing of industrial pipelines
- On/off control of water, gases, and other fluids
- Equipment-mounted valves and automation systems
General Specifications
| Parameter | Specification |
|---|---|
| Control mode | Active or passive on/off control |
| Output torque | 10–200 N·m |
| Rotation angle | 0–90° |
| Power supply | DC 24 V or AC 220 V |
| Operating time | 6–20 s, depending on torque configuration |
| Output shaft | 9×9, 11×11, 14×14, or 17×17 mm |
| Standby power | ≤5 W |
| Operating temperature | −25 to 55°C |
| Extreme temperature range | −45 to 75°C |
| Protection rating | IP65 |
| Housing material | Plastic or aluminum alloy |
| Color | Orange-red |
Torque and Housing Options
| Torque configuration | Operating time | Output shaft | Housing | Weight | Dimensions |
|---|---|---|---|---|---|
| 10 N·m | 6 s | 9×9 mm | Plastic | 0.2 kg | 69×61×58 mm |
| 15–18 N·m | 8 s | 9×9 mm | Aluminum alloy | 0.38 kg | 69×61×58 mm |
| 30–45 N·m | 10 s | 11×11 mm | Aluminum alloy | 0.87 kg | 78×57×80 mm |
| 50–75 N·m | 15 s | 14×14 mm | Aluminum alloy | 1.0 kg | 110×90×82 mm |
| 100 N·m | 10 s | 17×17 mm | Aluminum alloy | 3.6 kg | 143×110×140 mm |
| 200 N·m | 20 s | 17×17 mm | Aluminum alloy | 3.6 kg | 143×110×140 mm |
Power Data
| Torque range | DC 24 V rated loaded power | AC 220 V rated loaded power | DC 24 V stall power | AC 220 V stall power |
|---|---|---|---|---|
| 10–45 N·m | ≤10 W | ≤15 W | ≤25 W | ≤30 W |
| 50–75 N·m | ≤15 W | ≤20 W | ≤30 W | ≤35 W |
| 100–200 N·m | ≤35 W | ≤40 W | ≤60 W | ≤70 W |
Optional Functions
| Function | Availability |
|---|---|
| Open and closed position signals | Available across the full torque range |
| Power-failure reset | Available for selected torque configurations |
| RS485 | Available for 100–200 N·m configurations |
| Wireless remote control | Available for 100–200 N·m configurations |
| 4G wireless control | Available for 100–200 N·m configurations |
| Multi-turn operation | Up to 5 turns for 30–45 N·m; up to 10 turns for 50–75 N·m; up to 7 or 68 turns for 100–200 N·m |
| Fast-acting operation | Available according to the required torque |
Fast-Acting Configurations
| Housing class | Available operating configuration |
|---|---|
| 10 N·m class | 3 s / 5 N·m |
| 30–45 N·m class | 5 s / 10 N·m; 15 s / 30 N·m |
| 50–75 N·m class | 2.5 s / 10 N·m; 5 s / 20 N·m; 10 s / 30 N·m |
| 100–200 N·m class | 2.5 s / 30 N·m |
Selection Guide
Select the actuator with a suitable safety margin above the maximum valve operating torque. Confirm the required rotation angle, operating time, output-shaft size, installation space, power supply, and control signal. Position feedback, power-failure reset, communication, wireless control, and multi-turn operation can be selected as required.
