Product Overview

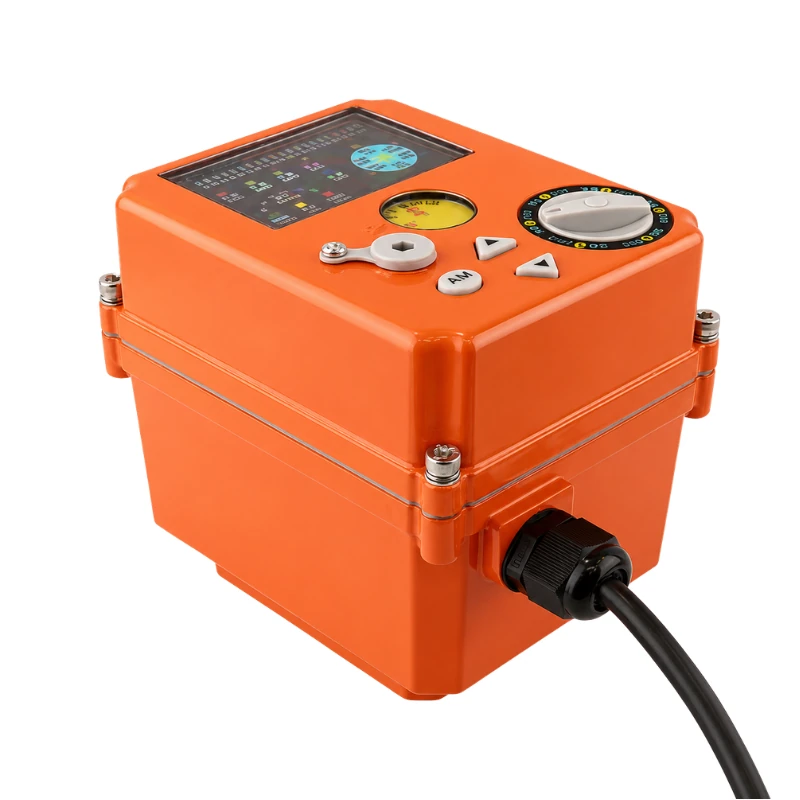

The BBVA-MOD is designed for continuous position control of ball valves, butterfly valves, diaphragm valves, and other rotary valves. It accepts a 4–20 mA or 0–10 V control signal, positions the valve according to the setpoint, and provides a corresponding valve-position feedback signal. It is suitable for automatic regulation of gas and liquid flow.
The actuator covers an output torque range from 10 to 200 N·m and is available with OLED, LED, or LCD display configurations. The panel provides valve position, setpoint, operating status, and fault information, together with manual operation, valve-position calibration, and control-parameter settings.
Key Features
- Output torque range from 10 to 200 N·m
- 4–20 mA or 0–10 V proportional control
- 4–20 mA or 0–10 V valve-position feedback
- Continuous 0–90° position control
- ±0.5% basic error and hysteresis below 0.3%
- Adjustable positioning accuracy from 0.2% to 3.6%
- OLED, LED, or LCD display options
- Manual operation, valve-position calibration, and status display
- Optional RS485 and open/closed position signals
- Wireless, 4G, power-failure reset, and multi-turn options for selected configurations
Typical Applications
- Motorized modulating ball valves
- Motorized modulating butterfly valves
- Motorized modulating diaphragm valves
- Gas and liquid flow regulation
- Remote valve-position control
- Industrial process control and equipment automation
- Stainless-steel, brass, and UPVC valves
General Specifications
| Parameter | Specification |
|---|---|
| Control mode | Modulating control |
| Input signal | 4–20 mA or 0–10 V |
| Output feedback | 4–20 mA or 0–10 V |
| Output torque | 10–200 N·m |
| Rotation angle | 0–90° |
| Power supply | DC 24 V or AC 220 V |
| Operating time | 8–20 s, depending on torque configuration |
| Basic error | ±0.5% |
| Hysteresis | <0.3% |
| Positioning accuracy | Adjustable from 0.2% to 3.6% |
| Standby power | ≤5 W |
| Operating temperature | −25 to 55°C |
| Extreme temperature range | −45 to 75°C |
| Protection rating | IP65; IP55 for selected internal-display configurations |
| Housing material | Plastic or aluminum alloy |
Torque and Housing Options
| Torque configuration | Operating time | Output shaft | Display | Weight | Dimensions |
|---|---|---|---|---|---|
| 10 N·m | 8 s | 9×9 mm | OLED | 0.2 kg | 69×61×58 mm |
| 15–18 N·m | 8 s | 9×9 mm | OLED | 0.38 kg | 69×61×58 mm |
| 30–45 N·m | 10 s | 11×11 mm | OLED | 0.87 kg | 78×57×80 mm |
| 50–75 N·m | 15 s | 14×14 mm | Internal OLED or color LCD | 1.0 kg | 110×90×82 mm |
| 100 N·m | 10 s | 17×17 mm | LED or color LCD | 3.6 kg | 143×110×140 mm |
| 200 N·m | 20 s | 17×17 mm | LED or color LCD | 3.6 kg | 143×110×140 mm |
Power Data
| Torque range | DC 24 V rated loaded power | AC 220 V rated loaded power | DC 24 V stall power | AC 220 V stall power |
|---|---|---|---|---|
| 10–45 N·m | ≤10 W | ≤15 W | ≤25 W | ≤30 W |
| 50–75 N·m | ≤15 W | ≤20 W | ≤30 W | ≤35 W |
| 100–200 N·m | ≤35 W | ≤40 W | ≤60 W | ≤70 W |
Control and Communication Options
| Configuration item | Available options |
|---|---|
| Input signal | 4–20 mA or 0–10 V |
| Output feedback | 4–20 mA or 0–10 V |
| Open and closed position signals | Available across the full torque range |
| RS485 | Available across the full torque range |
| Wireless remote control | Available for selected 30–200 N·m configurations |
| 4G wireless control | Available for selected 30–200 N·m configurations |
| Power-failure reset | Available for selected 50–200 N·m configurations |
| Multi-turn operation | Up to 5 turns for 30–45 N·m; up to 10 turns for 50–75 N·m; up to 7 or 68 turns for 100–200 N·m |
Display Options
| Torque range | Display type |
|---|---|
| 10–45 N·m | OLED display |
| 50–75 N·m | Internal OLED or color LCD |
| 100–200 N·m | LED or color LCD |
The display can show actual valve position, position setpoint, operating status, and fault information. The available display type depends on the selected torque and control configuration.
Selection Guide
Selection should consider the maximum valve regulating torque, control signal, feedback signal, positioning accuracy, operating time, output shaft, and available installation space. Select the required RS485, wireless control, power-failure reset, multi-turn operation, and display options as part of the actuator configuration.
