Product Overview

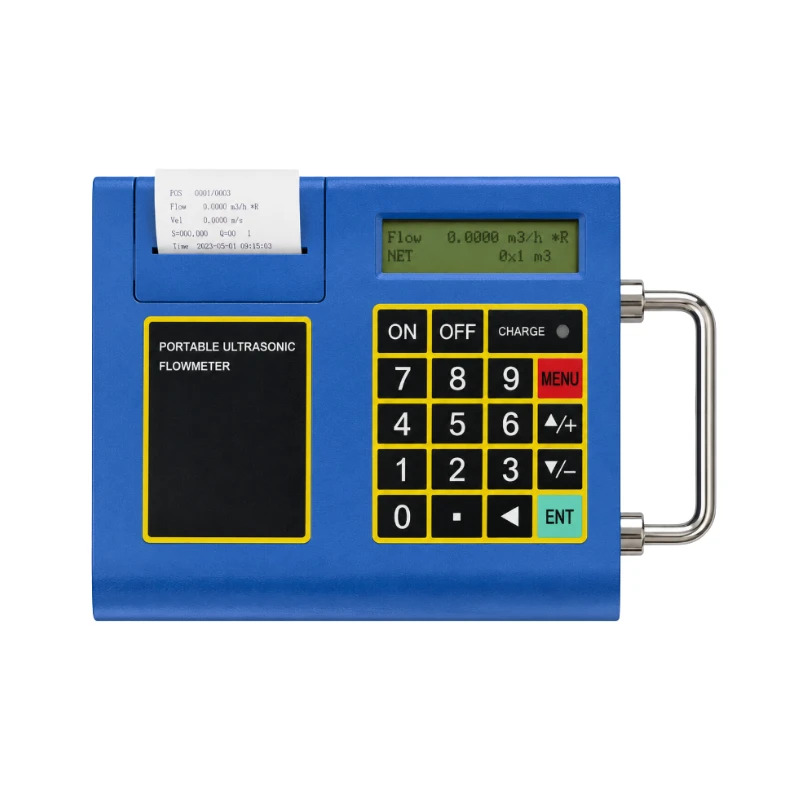

The BBUFM-PR is a portable clamp-on ultrasonic liquid flow meter for field testing, commissioning, maintenance, and temporary measurement. Transit-time transducers mount outside a closed pipe without cutting it or introducing pressure loss.
A backlit display, data logger, and miniature thermal printer support immediate or scheduled printing of measurement results. The built-in rechargeable battery provides approximately 20 hours of continuous operation.
Key Features
- Non-intrusive clamp-on measurement
- Accuracy better than ±1%, 0.5% linearity, and 0.2% repeatability
- Pipe sizes from DN15 to DN6000, depending on transducer
- Built-in miniature thermal printer and data logger
- Chinese and English operating interface
- RS485 communication
- Approximately 20 hours of battery operation
- Portable protective carrying case
Technical Specifications
| Parameter | Specification |
|---|---|
| Measuring principle | Ultrasonic transit time |
| Measured liquids | Water, seawater, industrial sewage, acid and alkaline liquids, oils, and other acoustically conductive liquids |
| Pipe size | DN15 to DN6000, depending on transducer |
| Flow-velocity range | 0 to ±30 m/s |
| Accuracy | Better than ±1% |
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Display | 2-line × 20-character backlit LCD |
| Printer | Miniature thermal printer |
| Communication | RS485 |
| Main-unit temperature | -20 to +60 °C |
| Standard transducer liquid temperature | ≤110 °C |
| High-temperature transducer range | -40 to +160 °C |
| Battery | Built-in rechargeable Ni-MH battery |
| Continuous operation | Approximately 20 hours |
| External power | 220 VAC |
| Power consumption | 1.5 W |
| Main-unit net weight | 2.5 kg |
Transducer Options
| Transducer configuration | Pipe size | Temperature range |
|---|---|---|
| Small clamp-on | DN15 to DN100 | -40 to +110 °C |
| Medium clamp-on | DN50 to DN1000 | -40 to +110 °C |
| Large clamp-on | DN300 to DN6000 | -40 to +110 °C |
| Small high-temperature | DN15 to DN100 | -40 to +160 °C |
| Medium high-temperature | DN50 to DN1000 | -40 to +160 °C |
Typical Applications
- Water supply, drainage, and wastewater treatment
- HVAC and energy systems
- Petroleum, chemical, and industrial liquids
- Power, metallurgy, and process measurement
- Pipeline flow verification and equipment maintenance
- Temporary field measurement with printed records
