Product Overview

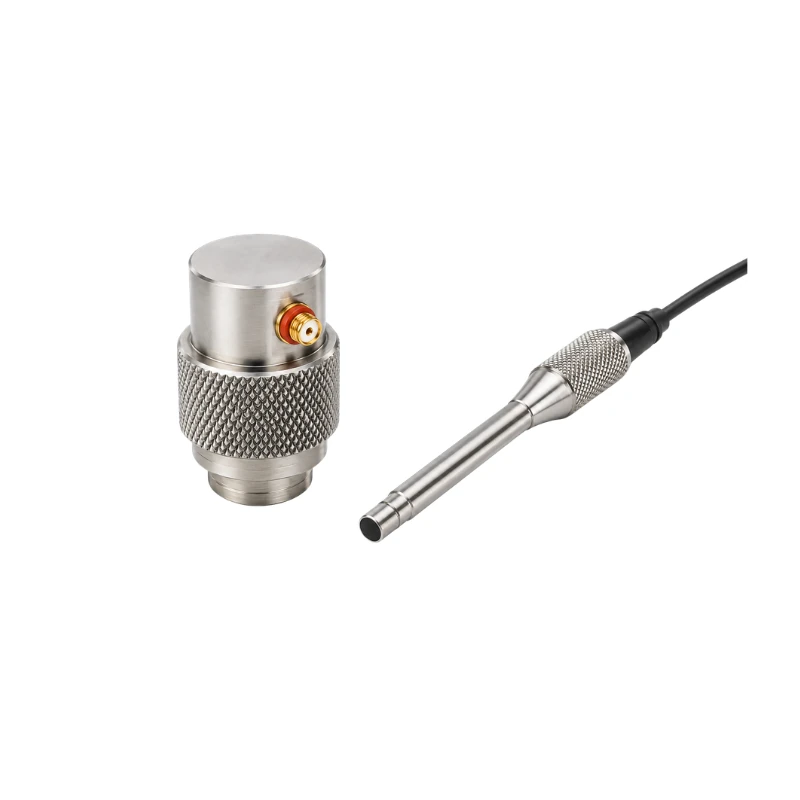

The BBTM-PT is designed for ultrasonic thickness measurement of thin sheets, thin-wall tubing, small components, curved parts, and areas with limited contact access. Its near-surface resolution supports measurement of metals, plastics, composites, pipes, and turbine blades. It can also measure localized wall thickness from the bottom of an external corrosion pit.
Multiple frequency, element size, delay line, and contact-tip configurations are available to suit the acoustic properties, thickness, curvature, contact area, and resolution requirements of the test material.
Key Features
- Precision thickness measurement for thin materials, thin-wall structures, and small components
- Good near-surface resolution for short sound paths
- Replaceable delay lines for different contact areas and component profiles
- High-frequency options for improved resolution on thin materials and small measurement areas
- Small contact-tip options for confined spaces, curved surfaces, and localized corrosion pits
- Straight, right-angle, and 45° handle options
Typical Applications
- Thin sheet and thin-wall tube thickness measurement
- Pipe and curved-component thickness measurement
- Plastic and composite thickness measurement
- Turbine blades and small complex components
- Local remaining-wall measurement at the bottom of external corrosion pits
- Near-surface inspection
Technical Specifications
| Parameter | Available options |
|---|---|
| Measurement method | Contact ultrasonic pulse-echo measurement |
| Frequency | 2.25, 3.5, 5, 7.5, 10, 15, 20, and 22 MHz |
| Element diameter | 3, 5, 6, and 13 mm |
| Small contact-tip diameter | 1.7 and 2.3 mm |
| Delay line length | 9.5 and 12.5 mm |
| Connection | Microdot or BNC cable, depending on configuration |
| Handle style | Straight, right-angle, or 45° |
| Delay line | Replaceable |
Available Configurations
| Configuration item | Available options |
|---|---|
| Operating frequency | Selected according to material, thickness, and resolution requirements |
| Element size | 3, 5, 6, or 13 mm |
| Contact area | Standard delay line or small contact tip |
| Delay line | Replaceable 9.5 or 12.5 mm option |
| Handling style | Standard, pencil, right-angle, or 45° |
| Connection | Microdot or BNC cable |
Selection Guide
Higher frequencies are suitable for thin materials and higher-resolution measurement. Smaller elements and contact tips are suitable for curved surfaces, confined areas, and localized measurement points. Selection should consider the material, target thickness, surface curvature, available contact space, and instrument connection.
