Ultrasonic sensing for pulmonary function measurement

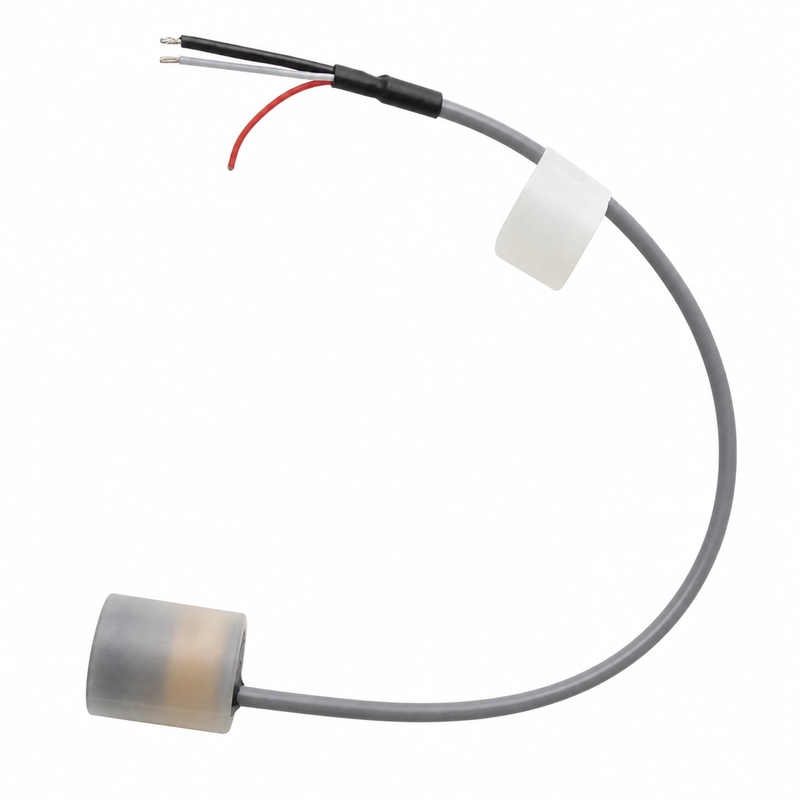

The BBMU-PFT200K is a 200 kHz ultrasonic transducer intended for pulmonary function instruments, spirometry, respiratory flow measurement and medical airflow sensing modules. Its documented reference range is 0.10 to 1.5 m.
The acoustic field is specified by a 10° ±10% half-power beam angle at -3 dB, supporting integration around the required acoustic path and the geometry of the respiratory sensing module.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBMU-PFT200K |
| Center frequency | 200 kHz ±5% |
| Recommended range | 0.10 to 1.5 m |
| Minimum impedance | (300-700) Ω ±20% |
| Capacitance | 400 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage <750 Vpp |
| Operating temperature | -40 to +80°C |
| Pressure rating | 16 kgf or 1.6 MPa |
| Half-power beam angle | 10° ±10% at -3 dB |
| Protection rating | IP68 |
| Weight | 10 g ±5% with 25 cm cable |
Respiratory measurement applications
- Pulmonary function instruments
- Spirometry
- Respiratory flow measurement
- Medical airflow sensing modules
For a measurement module, establish the path length and transducer alignment around the intended airflow channel.
Electrical and mechanical integration
The drive and receive circuit should be designed around the documented minimum-impedance value of (300-700) Ω ±20%, capacitance of 400 pF ±20% at 1 kHz and peak voltage below 750 Vpp. The specified operating environment is -40 to +80°C, with a pressure rating of 16 kgf or 1.6 MPa and IP68 protection.
The listed weight is 10 g ±5% with a 25 cm cable.
