Product Overview

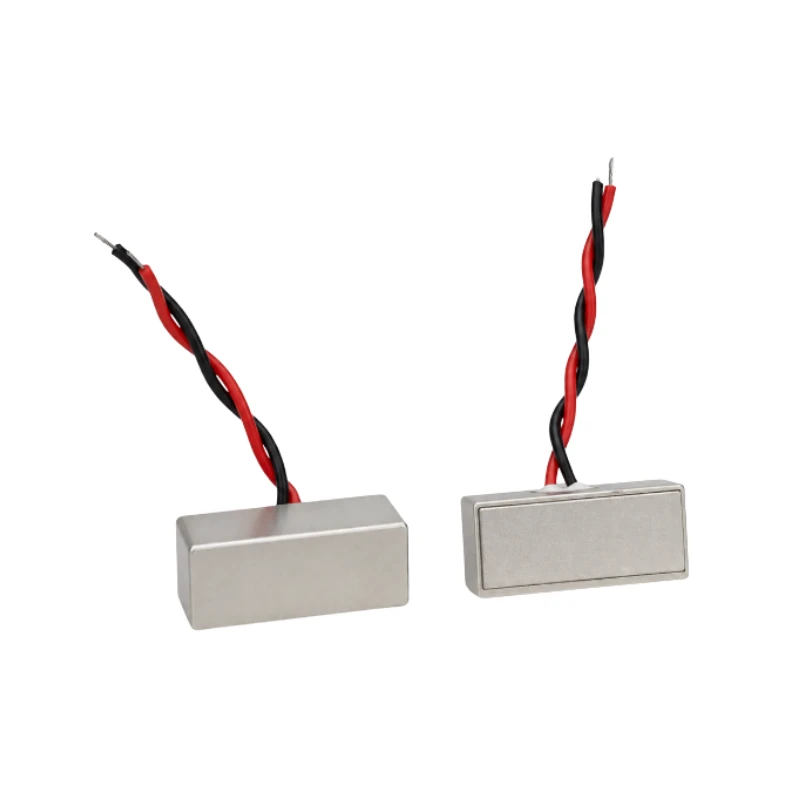

BBID-EC is a 170 kHz rectangular ultrasonic transducer for industrial error-correction, position-adjustment, and alignment-sensing systems. Its rectangular acoustic aperture produces different beam angles along the length and width axes, providing a directional ultrasonic signal for detecting position changes in moving materials.
The transducer can operate as an ultrasonic transmitting or receiving element in controllers, sensing modules, and automated equipment. It is suitable for position monitoring and correction of sheets, webs, and other moving materials.
Key Features
- 170 kHz center frequency
- Rectangular housing and acoustic aperture
- Different beam angles along the length and width axes
- 5° full beam angle along the length axis for a narrow beam
- 10° full beam angle along the width axis
- 10 kHz bandwidth
- ABS housing
- IP65 protection
- -20 to 70°C operating temperature
- Wire-lead connection for system integration
Typical Applications
- Industrial error-correction systems
- Position adjustment of moving materials
- Edge monitoring for sheets and webs
- Alignment sensing in automated equipment
- Directional ultrasonic transmission and reception
- OEM ultrasonic sensing modules
Beam Characteristics
The rectangular acoustic aperture gives BBID-EC different directivity in the two principal axes:
- Full beam angle along the length axis: 5° ± 1°
- Full beam angle along the width axis: 10° ± 1°
The narrow beam supports directional position sensing in correction and alignment systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Center operating frequency | 170 kHz ± 4% |
| Bandwidth | 10 kHz |
| Overall sensitivity | ≥ -20 dB |
| Sensitivity test conditions | 10 Vp-p; 5 cycles; 40 mm distance |
| Blind zone | < 10 cm |
| Length-axis beam angle | 5° ± 1° |
| Width-axis beam angle | 10° ± 1° |
| Beam-angle definition | -3 dB full angle |
| Electrostatic capacitance | 1600 pF ± 20% |
| Minimum parallel impedance | 300 Ω ± 30% |
| Maximum operating voltage | < 300 V |
| Voltage test condition | 2% pulse duty cycle |
| Operating temperature | -20 to 70°C |
| Degree of protection | IP65 |
| Housing material | ABS |
| Test ambient temperature | 25°C |
Dimensions
| Item | Dimension |
|---|---|
| Front housing size | 26.5 × 16.5 mm |
| Acoustic aperture | 20 × 10 mm |
| Housing shape | Rectangular |
| Electrical connection | Two wire leads |
System Integration
BBID-EC is an ultrasonic transducer element. Driving, signal processing, position evaluation, and correction control are provided by the associated electronics or control system. The transmitter-receiver arrangement and driving parameters should be selected according to operating distance, mounting angle, material travel direction, and required detection accuracy.
Customization Options
- Operating frequency
- Housing dimensions
- Acoustic aperture
- Beam angle
- Lead length
- Housing and mounting structure
