Ultrasonic double-sheet monitoring for material handling

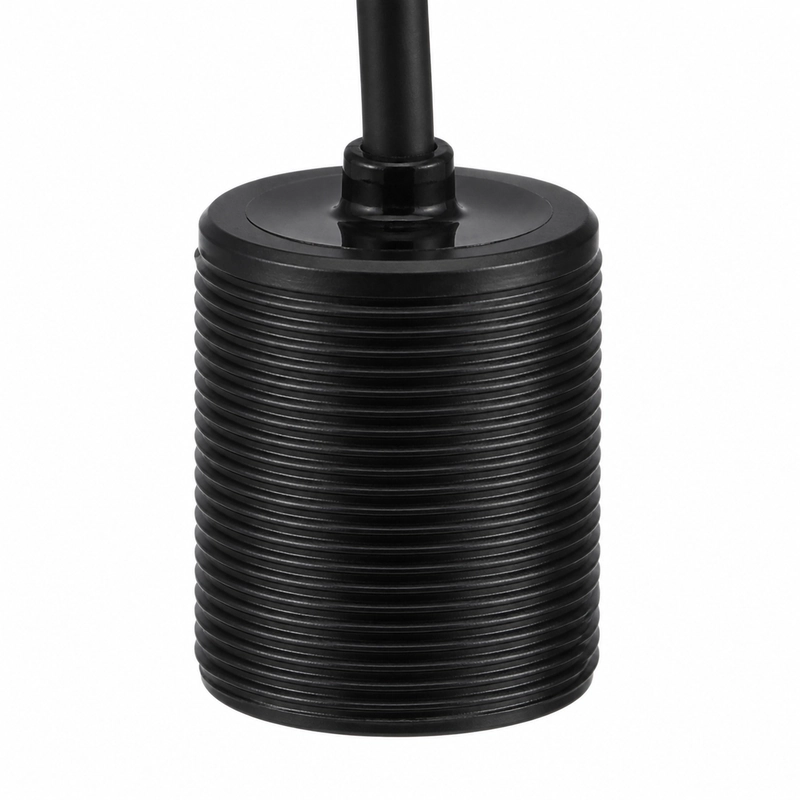

The BBID-DSS-B is a 125 kHz ultrasonic transducer for single- and double-sheet detection. Its documented applications include printing and packaging equipment, paper feeding systems, metal or plastic sheet inspection, and automated double-feed detection.
The specified reference range is 0.12 to 2 m, with a 13.5° ±10% half-power beam angle at -3 dB. These values provide the basis for planning the detection position and acoustic path around the sheet-handling mechanism.
BBID-DSS-B technical specifications
| Parameter | Specification |
|---|---|
| Model | BBID-DSS-B |
| Center frequency | 125 kHz ±5% |
| Recommended range | 0.12 to 2 m |
| Minimum impedance | 600 Ω ±20% |
| Capacitance | 560 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage <1,200 Vpp |
| Operating temperature | -40 to +80°C |
| Pressure rating | ≤3 kgf or 0.3 MPa |
| Half-power beam angle | 13.5° ±10% at -3 dB |
| Mounting thread | M18 × 1.5 |
| Protection rating | IP68 |
| Weight | 23 g ±5% with 1 m cable |
Detection layout and electrical matching
For integration, define the acoustic path, target position and available mounting space for the actual paper, metal or plastic sheet. The drive and receive electronics should accommodate the 600 Ω minimum impedance, 560 pF capacitance at 1 kHz, and peak-voltage limit below 1,200 Vpp.
The transducer uses an M18 × 1.5 mounting thread and is specified for -40 to +80°C, up to 3 kgf or 0.3 MPa, with IP68 protection. The listed weight of 23 g ±5% applies with a 1 m cable.
Available acoustic configurations
| Center frequency | Recommended range | Half-power angle at -3 dB | Mounting |
|---|---|---|---|
| 125 kHz ±5% | 0.12 to 2 m | 13.5° ±10% | M18 × 1.5 thread |
| 200 kHz ±5% | 0.10 to 1.5 m | 8° ±10% | M18 × 1.5 thread |
| 200 kHz ±5% | 0.15 to 1.5 m | 3.8° ±10% | Refer to the dimensional drawing |
The primary BBID-DSS-B specification is the 125 kHz configuration. The source retains “-B” in the model name but does not define the suffix as a separate performance or construction feature.
