Ultrasonic measurement for wind speed and direction

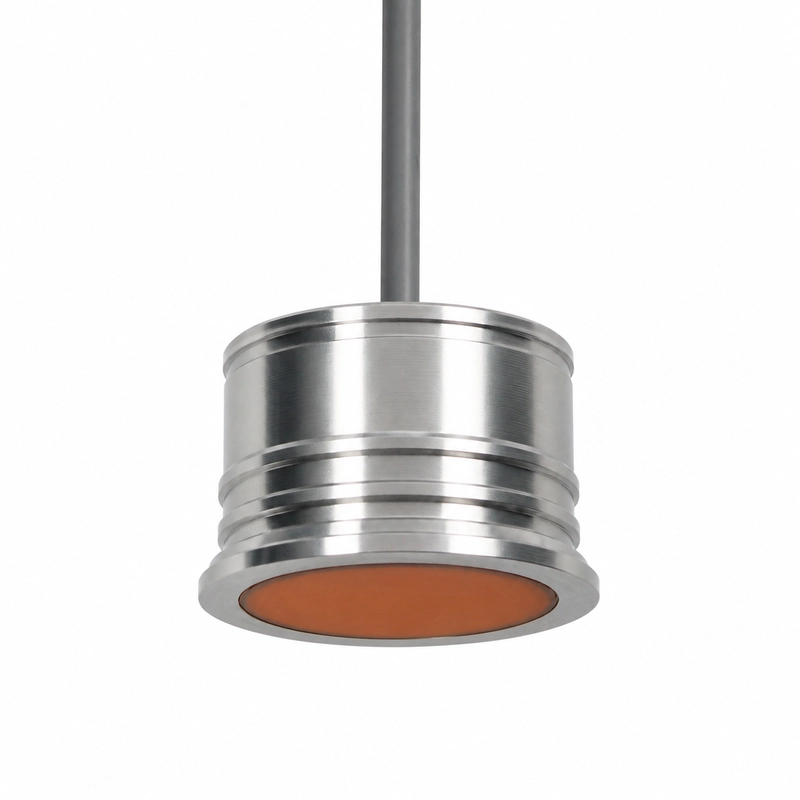

The BBFM-V105K is designed as a transducer component for 2D and 3D ultrasonic anemometers, meteorological monitoring, ventilation airflow measurement and industrial duct monitoring. Its center frequency is 105 kHz ±5%, with a stated reference range of 0.15 to 3 m.
The half-power beam angle is specified as 9.1° ±10% at -3 dB. An anemometer layout should account for this beam geometry and the intended acoustic path between transducers.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBFM-V105K |
| Center frequency | 105 kHz ±5% |
| Recommended range | 0.15 to 3 m |
| Minimum impedance | 540 Ω ±20% |
| Capacitance | 1200 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage <800 Vpp |
| Operating temperature | -40 to +80°C |
| Pressure rating | ≤3 kgf or 0.3 MPa |
| Half-power beam angle | 9.1° ±10% at -3 dB |
| Housing material | LY12 |
| Mounting | Refer to dimensional drawing |
| Protection rating | IP68 |
| Weight | 50 g ±5% with 2 m cable |
Specified monitoring applications
- 2D and 3D ultrasonic anemometers
- Meteorological monitoring
- Ventilation airflow measurement
- Industrial duct monitoring
System integration
The transmit and receive electronics should be matched to a minimum impedance of 540 Ω ±20% and capacitance of 1200 pF ±20% at 1 kHz. Peak voltage must remain below 800 Vpp.
Use the dimensional drawing to confirm mounting space and transducer alignment. The installation should remain within -40 to +80°C and no more than 3 kgf or 0.3 MPa while maintaining the specified IP68 protection.
