Product Overview

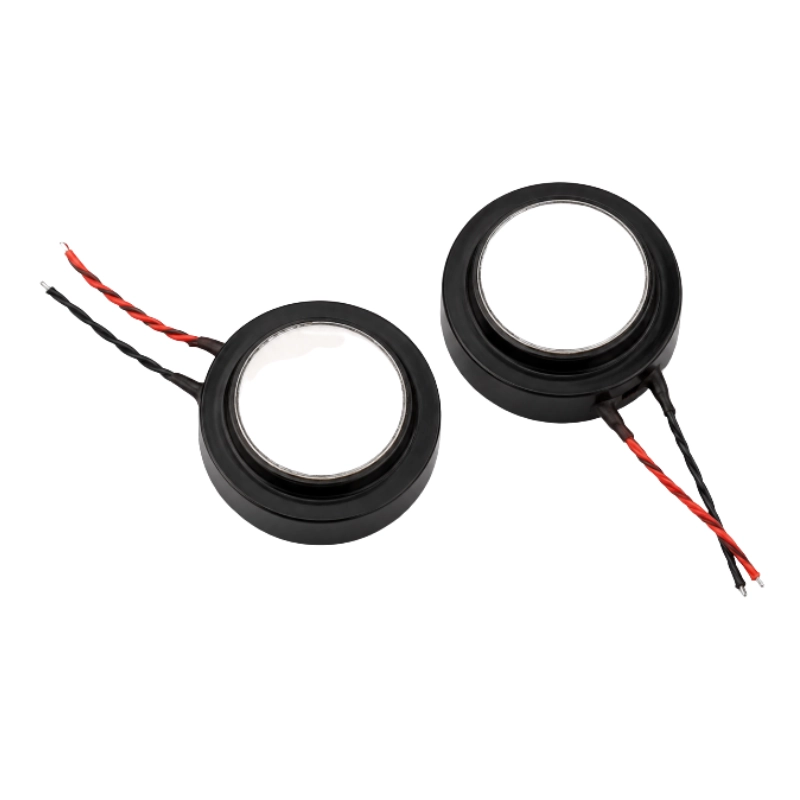

BBFM-Q500K is a 500 kHz ultrasonic transducer for ultrasonic gas flow meters and gas metering equipment. It can be integrated as a transmitting and receiving acoustic element in gas-flow measurement systems. Its 5° nominal beam angle supports acoustic measurement paths that require a concentrated ultrasonic beam.
The transducer provides IP65 protection and an operating temperature range of -20 to 70 °C. It is suitable for gas flow meters, metering modules, and OEM ultrasonic measurement equipment.
Key Features
- 500 kHz center operating frequency
- 5° nominal beam angle
- Designed for integration into ultrasonic gas flow meters
- IP65 protection
- -20 to 70 °C operating temperature
Technical Specifications
| Parameter | Value |
|---|---|
| Center operating frequency | 500 kHz ±4% |
| Combined transmitting and receiving sensitivity | ≥ -50 dB |
| Sensitivity test conditions | 3 Vp-p, 8 cycles, 8 cm transmitter-to-receiver distance |
| Beam angle (-3 dB full angle) | 5° ±1° |
| Capacitance | 300 pF ±20% |
| Minimum parallel impedance | 70 Ω ±30% |
| Maximum operating voltage | <500 V, pulse, 2% duty cycle |
| Operating temperature | -20 to 70 °C |
| Protection rating | IP65 |
| Parameter test temperature | 25 °C |
Typical Applications
- Ultrasonic gas flow meters
- Gas metering modules
- Industrial gas-flow measurement equipment
- OEM ultrasonic gas measurement systems
