Non-intrusive ultrasonic flow measurement on pipelines

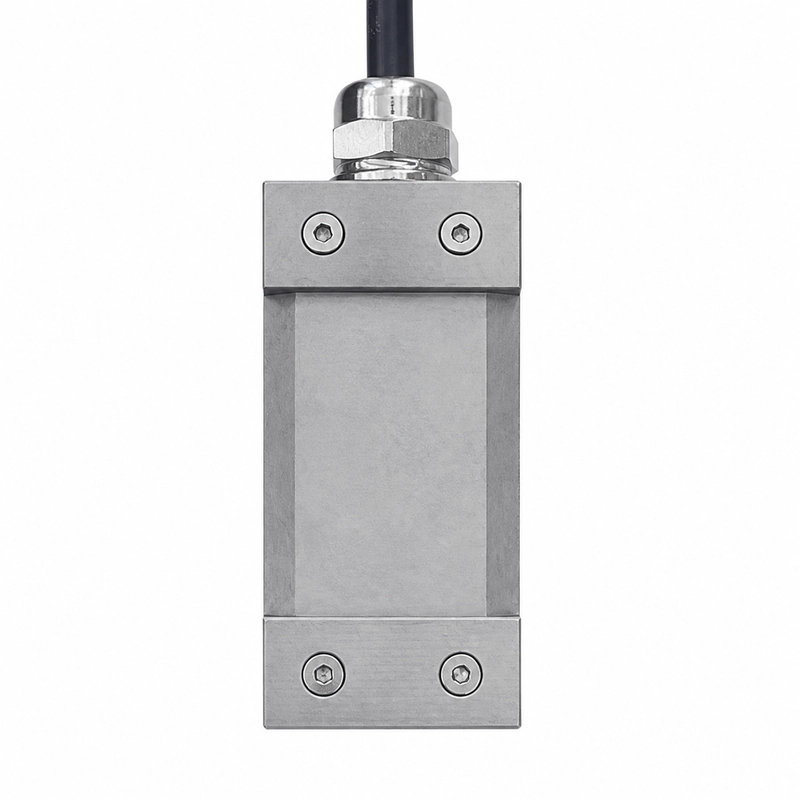

The BBFM-Q500K-B is a 500 kHz clamp-on ultrasonic flow measurement transducer. Mounted externally, it supports clamp-on ultrasonic flow meters, pipeline flow monitoring, temporary flow testing and measurement on pipes where penetration is undesirable.
The operating range is -40 to +80°C, with pressure up to 3 kgf or 0.3 MPa and IP68 protection.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBFM-Q500K-B |
| Center frequency | 500 kHz ±5% |
| Minimum impedance | 150 Ω ±20% |
| Capacitance | 4,000 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage <600 Vpp |
| Operating temperature | -40 to +80°C |
| Pressure rating | ≤3 kgf or 0.3 MPa |
| Housing material | 304 stainless steel and PEEK |
| Protection rating | IP68 |
Where this transducer is used
- Clamp-on ultrasonic flow meters
- Pipeline flow monitoring
- Temporary flow testing
- Pipes where penetration is undesirable
