Clamp-on flow measurement without pipe penetration

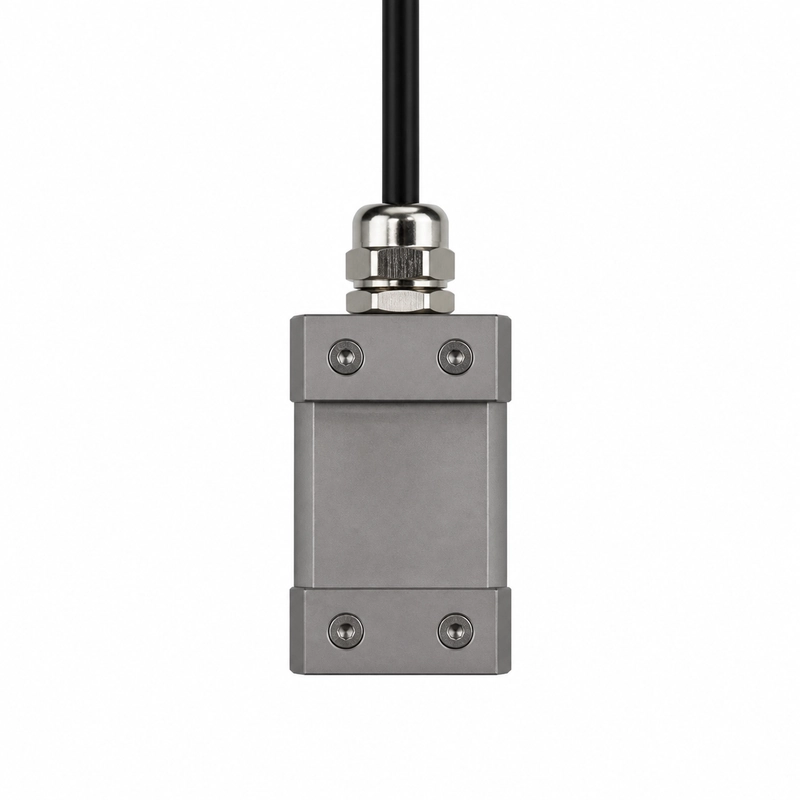

The BBFM-Q1M-D is a 1 MHz ultrasonic flow measurement transducer designed for external mounting on a pipe. Applications include clamp-on ultrasonic flow meters, pipeline flow monitoring, temporary flow testing and installations where pipe penetration is undesirable.
Electrical and operating data
| Parameter | Specification |
|---|---|
| Model | BBFM-Q1M-D |
| Center frequency | 1 MHz ±5% |
| Minimum impedance | 30 Ω ±20% |
| Capacitance | 5,000 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage <300 Vpp |
| Operating temperature | -40 to +80°C |
| Protection rating | IP68 |
Available material and pressure configurations
| Center frequency | Housing material | Pressure rating |
|---|---|---|
| 1 MHz ±5% | 304 stainless steel and PEEK | ≤3 kgf or 0.3 MPa |
| 1,000 kHz ±5% | PI and ABS | ≤10 kgf or 1 MPa |
| 1 MHz ±5% | 304 stainless steel and PI | ≤10 kgf or 1 MPa |
Applications
- Clamp-on ultrasonic flow meters
- Pipeline flow monitoring
- Temporary flow testing
- Pipes where penetration is undesirable
Selection and integration
Selection should account for the operating medium and temperature, required acoustic path, pipe condition, available installation space, pressure and ingress-protection requirements, and the drive and receive electronics.
