150 kHz transducer for pressurized gas measurement

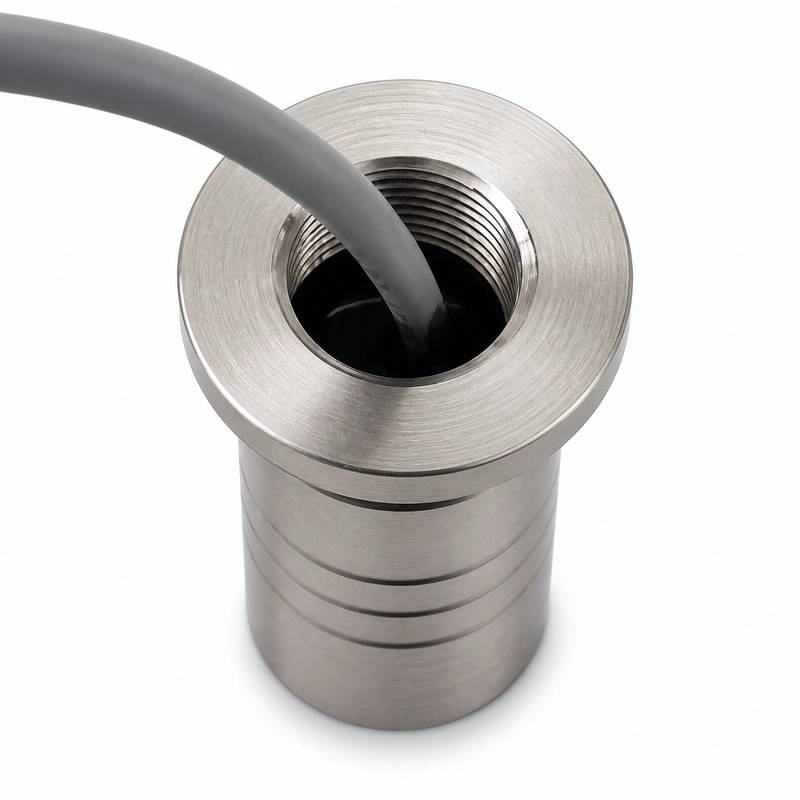

The BBFM-Q150K is an ultrasonic gas flow measurement transducer for industrial gas flow meters, gas meters, gas velocity measurement and transit-time gas measurement modules. Its center frequency is specified as 150 kHz ±5%.
The pressure rating reaches 30 kgf or 3 MPa. The stated operating temperature is -40 to +80°C, and the enclosure has an IP68 protection rating.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBFM-Q150K |
| Center frequency | 150 kHz ±5% |
| Minimum impedance | 500 Ω ±20% |
| Capacitance | 900 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage <800 Vpp |
| Operating temperature | -40 to +80°C |
| Pressure rating | ≤30 kgf or 3 MPa |
| Half-power beam angle | 12° ±10% at -3 dB |
| Housing material | 304 stainless steel and titanium alloy |
| Protection rating | IP68 |
Specified gas flow applications
- Industrial gas flow meters
- Gas meters
- Gas velocity measurement
- Transit-time gas measurement modules
Acoustic and electrical characteristics
The half-power beam angle is 12° ±10% at -3 dB.
Drive and receive electronics should be matched to the 500 Ω ±20% minimum impedance and the 900 pF ±20% capacitance specified at 1 kHz. Applied peak voltage must remain below 800 Vpp.
