External liquid level detection for tanks

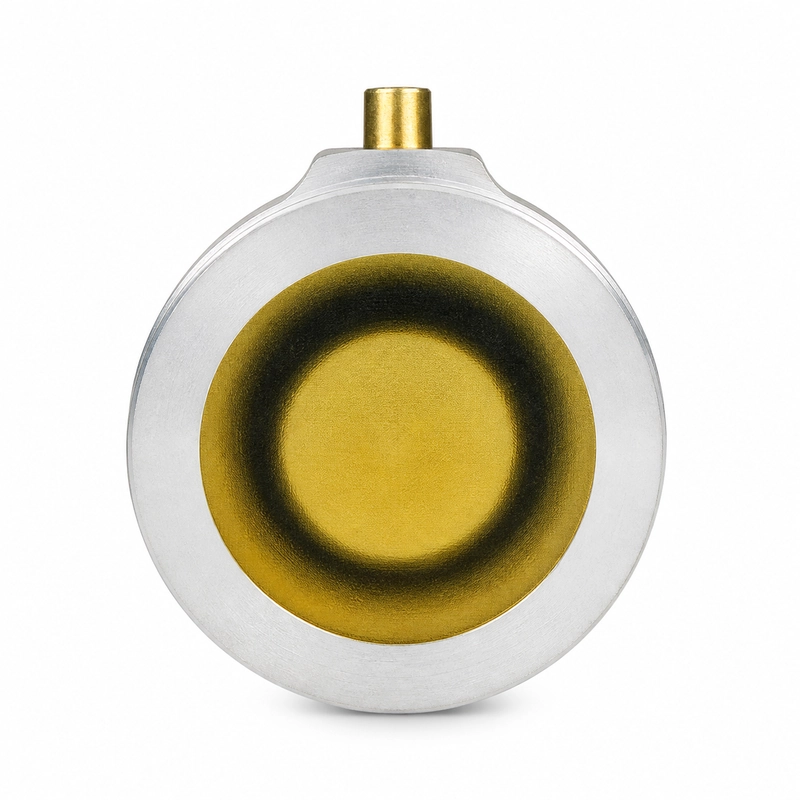

The BBDM-5MR1M is a 5 MHz ultrasonic transducer intended for liquid level detection from outside a tank. Its documented reference range is 0.01 to 1 m, with a 0.8° half-power beam angle at -3 dB.
Specified uses include fuel and oil tank level detection, sealed tank level monitoring, vehicle and machinery tanks, and through-wall detection of corrosive liquids. This application range allows the sensing component to be evaluated where the liquid is contained behind a tank wall.
Technical data
| Parameter | Specification |
|---|---|
| Model | BBDM-5MR1M |
| Center frequency | 5 MHz ±5% |
| Recommended range | 0.01 to 1 m |
| Minimum impedance | 15 Ω ±20% |
| Capacitance | 3,400 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage below 60 Vpp |
| Operating temperature | -40 to +80 °C |
| Pressure rating | Up to 10 kgf or 1 MPa |
| Half-power beam angle at -3 dB | 0.8° |
| Housing material | 2A12 |
| Mounting | See dimensional drawing |
| Protection rating | IP68 |
| Weight | 240 g ±5% |
| Cable length | 5 m + 1 m |
Application scope
- Fuel and oil tank level detection
- Sealed tank level monitoring
- Vehicle and machinery tanks
- Through-wall detection of corrosive liquids
Details to define before integration
Specify the operating medium and temperature range, required measuring distance or acoustic path, target size and surface condition, available mounting space and interface dimensions, operating pressure, and protection requirements. Drive and receive electronics, cable arrangement and the connection method also need to be matched to the installation.
