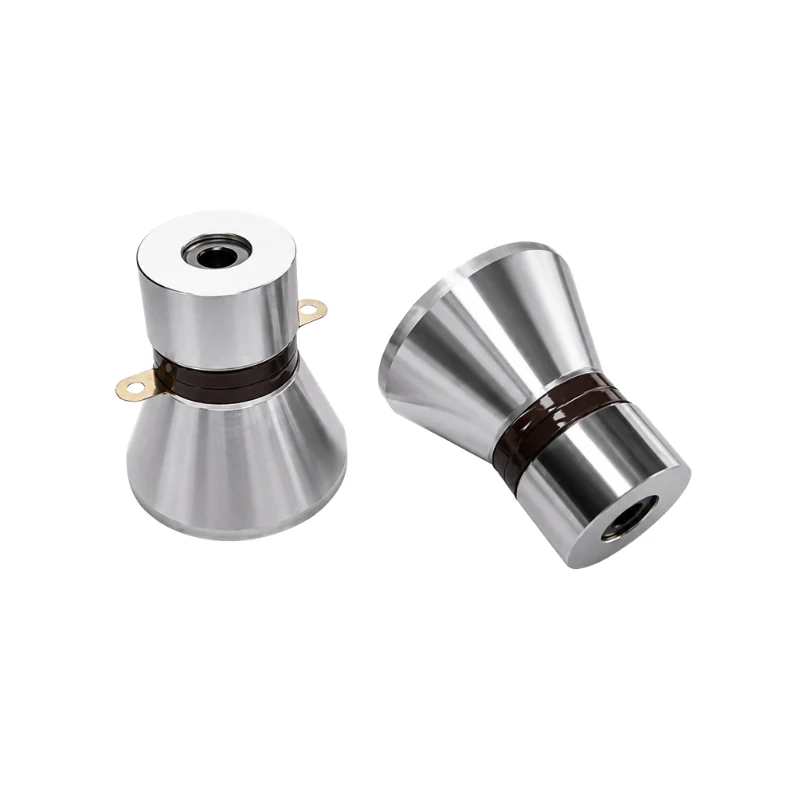

BBCL-40KP100 Product Overview
The BBCL-40KP100 is a piezoelectric transducer designed for ultrasonic cleaning equipment. With a nominal frequency of 40 kHz and a rated power of 100 W, it converts high-frequency electrical energy from an ultrasonic generator into mechanical vibration. The resulting cavitation, acoustic streaming, and radiation pressure in the cleaning liquid help loosen contaminants and enhance the cleaning process.
The product range includes nominal frequencies of 20, 25, 28, 40, 54, and 80 kHz and rated power levels from 35 to 120 W. Selection should be based on the items being cleaned, tank design, generator frequency, and available installation space.
Main Specifications
| Parameter | Value |
|---|---|
| Model | BBCL-40KP100 |
| Nominal frequency | 40 kHz |
| Resonant frequency | 40 ± 0.5 kHz |
| Static capacitance | 7800 pF ±10% |
| Resonant impedance | ≤25 Ω |
| Rated power | 100 W |
| Radiating surface diameter | 52 mm |
| Height | 48 mm |
Product Features
- Designed for industrial ultrasonic cleaning equipment
- Piezoelectric ceramic transduction structure
- Compatible with ultrasonic generators
- Multiple frequency and power configurations available
- Different radiating surface diameters and heights available
- Suitable for integration into cleaning tanks and cleaning modules
Available Configurations
| Model | Resonant frequency | Static capacitance | Resonant impedance | Rated power | Radiating surface diameter | Height |
|---|---|---|---|---|---|---|
| BBCL-20KP120 | 20 ± 0.5 kHz | 9000 pF ±10% | ≤25 Ω | 120 W | 68 mm | 46 mm |
| BBCL-20KP100 | 20 ± 0.5 kHz | 5000 pF ±10% | ≤25 Ω | 100 W | 68 mm | 94 mm |
| BBCL-25KP60 | 25 ± 0.5 kHz | 4800 pF ±10% | ≤25 Ω | 60 W | 59 mm | 80 mm |
| BBCL-28KP120 | 28 ± 0.5 kHz | 7000 pF ±10% | ≤25 Ω | 120 W | 68 mm | 66 mm |
| BBCL-28KP100 | 28 ± 0.5 kHz | 5000 or 7800 pF ±10% | ≤25 Ω | 100 W | 68 mm | 66 mm |
| BBCL-28KP60 | 28 ± 0.5 kHz | 3500 or 4800 pF ±10% | ≤25 Ω | 60 W | 59 mm | 68 mm |
| BBCL-28KP50 | 28 ± 0.5 kHz | 4000 pF ±10% | ≤25 Ω | 50 W | 45 mm | 82 mm |
| BBCL-40KP100 | 40 ± 0.5 kHz | 7800 pF ±10% | ≤25 Ω | 100 W | 52 mm | 48 mm |
| BBCL-40KP60 | 40 ± 0.5 kHz | 3500 or 4800 pF ±10% | ≤25 Ω | 60 W | 45 mm | 50 mm |
| BBCL-40KP50 | 40 ± 0.5 kHz | 4000 pF ±10% | ≤25 Ω | 50 W | 45 mm | 55 mm |
| BBCL-54KP35 | 54 ± 0.5 kHz | 3200 pF ±10% | ≤25 Ω | 35 W | 38 mm | 36 mm |
| BBCL-80KP60 | 80 ± 0.5 kHz | 4800 pF ±10% | ≤25 Ω | 60 W | 40 mm | 60 mm |
Typical Applications
- Ultrasonic cleaning of industrial components
- Cleaning of metal parts and hardware
- Cleaning of electronic and precision components
- Ultrasonic cleaning tanks
- Automated cleaning equipment and cleaning modules
Selection Considerations
The transducer frequency must match the ultrasonic generator. The items being cleaned, tank dimensions, required power, number of transducers, mounting method, and available installation space should also be confirmed before selecting the final configuration.
