Product Overview
The BBTM-CW is designed for corrosion, erosion, and remaining-wall thickness measurement on pipes, storage tanks, pressure vessels, industrial equipment, and mechanical components. It is suitable for industrial maintenance, condition assessment, and periodic inspection, including contact measurement on rough surfaces, curved components, and near-surface regions.
Separate transmit and receive acoustic paths provide good near-surface response and help reduce noise caused by scattering in coarse-grained materials. Multiple frequency, element size, acoustic focal distance, contact-face, and connection options are available.
Key Features
- Designed for corrosion, erosion, and remaining-wall thickness measurement
- Separate transmit and receive paths for good near-surface resolution
- Suitable for pipes, vessels, and other curved components
- Good coupling adaptability on rough contact surfaces
- Helps reduce scattering noise in coarse-grained materials
- Contact face can be contoured for curved components
- Standard, compact, and small-size configurations
Typical Applications
- Pipe corrosion and remaining-wall thickness measurement
- Storage tank and pressure vessel inspection
- Erosion monitoring on industrial equipment
- Curved and rough-surface measurement
- Cladding and weld-overlay inspection
- Screws, bolts, pins, and other small components
- Contact ultrasonic inspection of coarse-grained materials
Technical Specifications
| Parameter | Available options |
|---|---|
| Measurement method | Contact ultrasonic transmit-receive measurement |
| Frequency | 1, 2, 2.25, 3.5, 4, 5, 7.5, and 10 MHz |
| Element shape | Round or rectangular |
| Round element size | 5, 6, 8, 10, and 13 mm |
| Acoustic focal distance | 3–30 mm, depending on configuration |
| Contact face | Standard flat or contoured |
| Connection | Lemo 00, Microdot, fixed BNC cable, or side-mounted MMD |
| Cable | Dual-channel connection cable, depending on configuration |
Available Configurations
| Configuration item | Available options |
|---|---|
| Operating frequency | Selectable within the 1–10 MHz range |
| Element size | Multiple round or rectangular options |
| Acoustic focal distance | 3–30 mm |

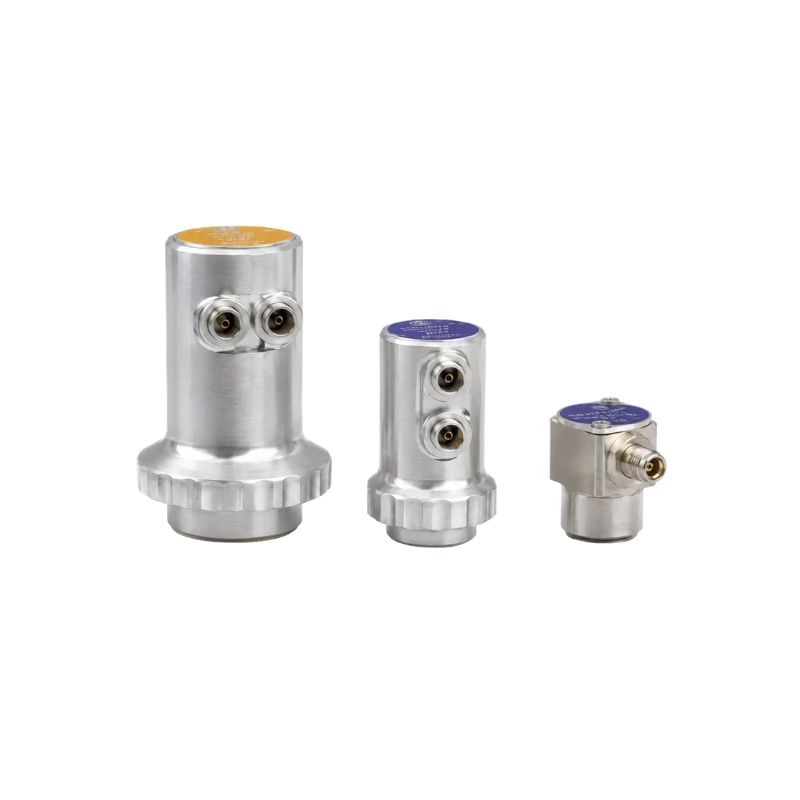

| Probe size | Standard, compact, or small-size configuration |
| Contact face | Flat or contoured to match the component |
| Connection | Lemo 00, Microdot, BNC, or MMD |
Selection Guide
Selection should consider the test material, expected wall thickness, corrosion condition, surface roughness, component curvature, available measurement space, and instrument connection. A contoured contact face can be selected for curved components, while compact or small-size configurations are suitable for restricted access and small measurement areas.
