Underwater ranging across a 3–500 m reference span

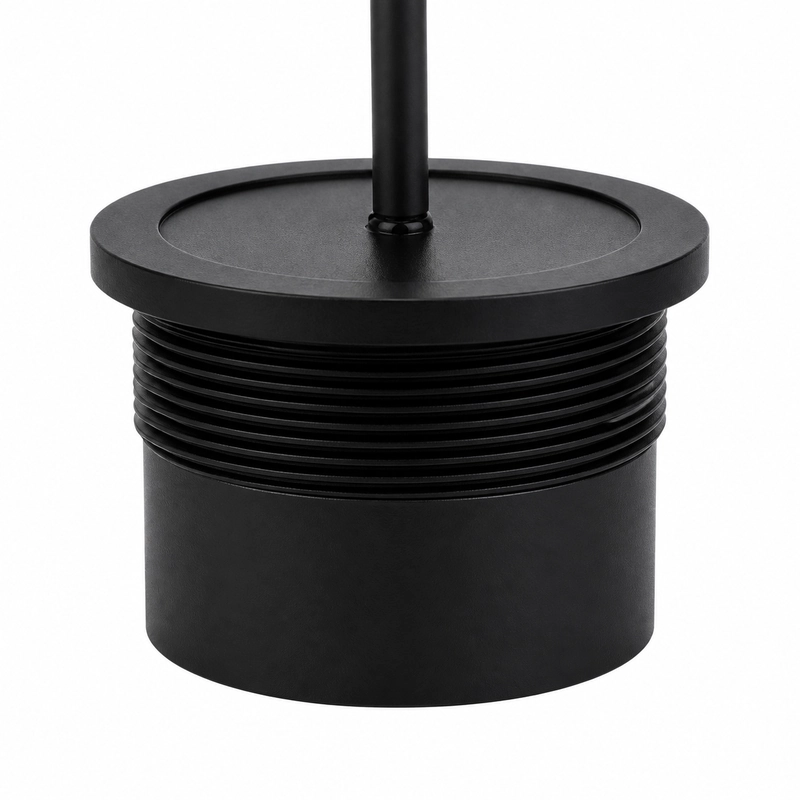

The BBDM-D55K is a 55 kHz ultrasonic transducer for ranging and depth measurement in water. Its reference range is 3 to 500 m.
Acoustic and environmental characteristics
The half-power beamwidth at -3 dB is 26.6° ±10%. The transducer operates from -40 to +80°C, carries an IP68 protection rating and has a stated pressure limit of ≤10 kgf or 1 MPa.
Technical specifications
| Model | BBDM-D55K |
|---|---|
| Center frequency | 55 kHz ±5% |
| Recommended range | 3–500 m |
| Minimum impedance | 700 Ω ±20% |
| Capacitance | 1800 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage <1500 Vpp |
| Operating temperature | -40 to +80°C |
| Pressure rating | ≤10 kgf or 1 MPa |
| Half-power beamwidth | 26.6° ±10% at -3 dB |
| Protection rating | IP68 |
Target applications
- Underwater ranging and depth measurement
- Obstacle avoidance for underwater robots
- Distance measurement in tanks and bodies of water
- Underwater target detection
