Underwater ranging and depth measurement

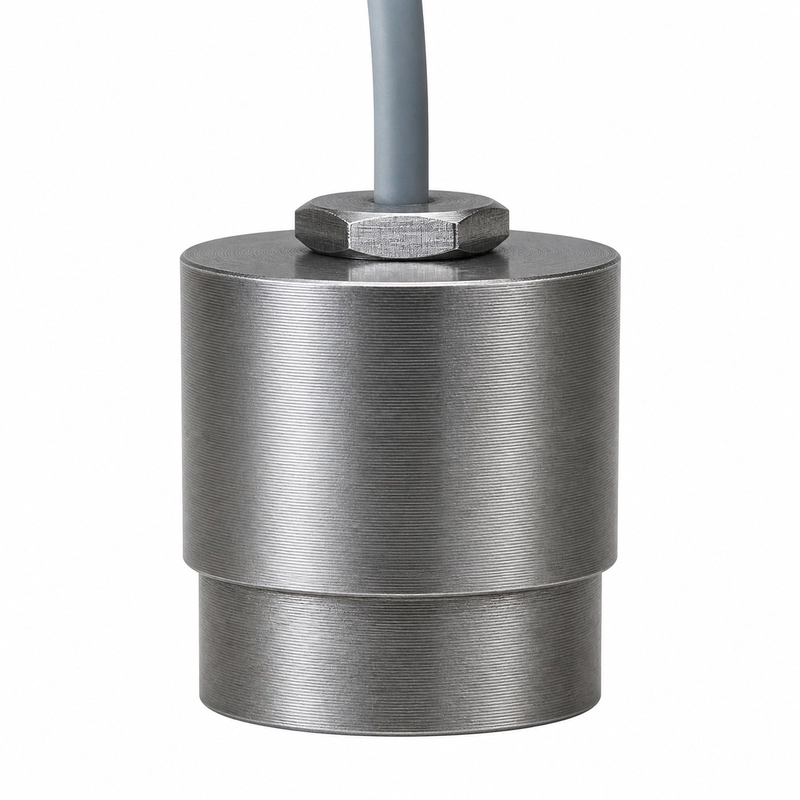

The BBDM-D25K is a 25 kHz underwater ultrasonic transducer for distance and depth measurement. Applications include underwater robot obstacle avoidance, measurement in tanks and bodies of water, and underwater target detection.
Electrical specifications
| Parameter | Specification |
|---|---|
| Model | BBDM-D25K |
| Minimum impedance | 10,000 Ω ±20% |
| Capacitance | 1,300 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage <450 Vpp |
| Housing material | 304 |
| Protection rating | IP68 |
Available acoustic configurations
| Center frequency | Recommended range | Acoustic field | Operating temperature | Pressure rating |
|---|---|---|---|---|
| 25 kHz ±1 kHz | 200 m | 180° | -40 to +80°C | ≤10 kgf or 1 MPa |
| 25 kHz ±5% | 500 m | Horizontally omnidirectional | -10 to +40°C | ≤3 kgf or 0.3 MPa |
Applications
- Underwater ranging and depth measurement
- Underwater robot obstacle avoidance
- Tank and water-body distance measurement
- Underwater target detection
System selection
Selection should account for the required distance and acoustic field together with the operating temperature and pressure of the selected configuration. The operating medium, target size and surface condition, installation space, ingress protection, and drive and receive electronics should also be considered.
