Short-range underwater measurement at 1 MHz

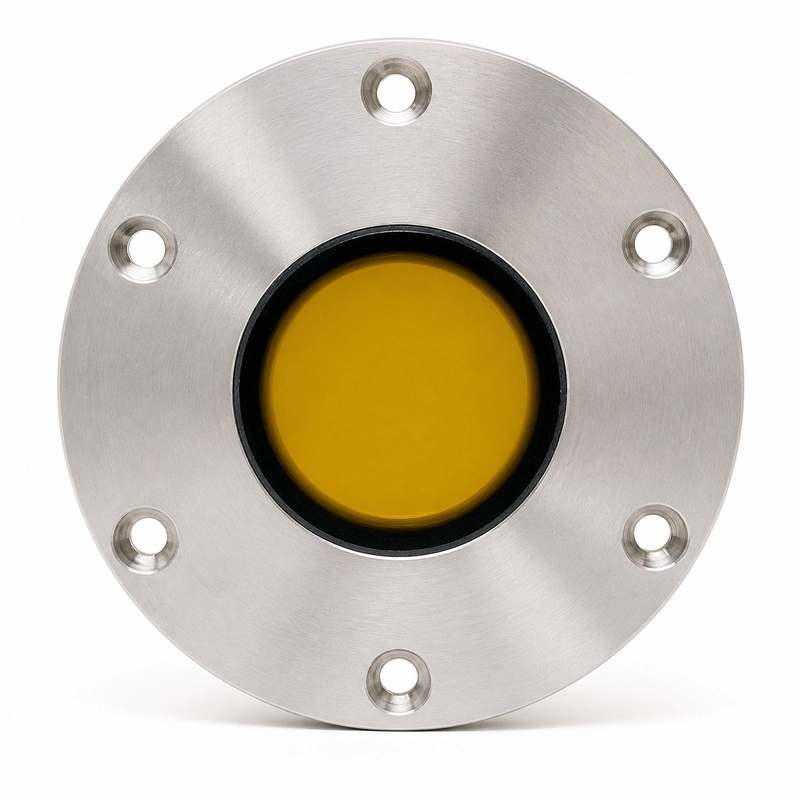

The BBDM-D1M is an underwater ultrasonic transducer for ranging and depth measurement over a specified reference range of 0.10 to 3.0 m. Documented applications include underwater robot obstacle avoidance, distance measurement in tanks and water bodies, and underwater target detection.
Narrow acoustic beam
The center frequency is 1 MHz and the half-power beam angle at -3 dB is 3.0° ±10%. The beam should be aligned with the intended target and evaluated against the acoustic path, target size and surface condition.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBDM-D1M |
| Center frequency | 1 MHz ±5% |
| Recommended range | 0.10 to 3.0 m |
| Half-power beam angle at -3 dB | 3.0° ±10% |
| Minimum impedance | 15 Ω ±20% |
| Capacitance | 2,500 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage <300 Vpp |
| Operating temperature | -10 to +50°C |
| Pressure rating | 5 MPa |
| Housing material | 316 stainless steel and PI |
| Protection rating | IP68 |
Applications
- Underwater ranging and depth measurement
- Underwater robot obstacle avoidance
- Tank and water-body distance measurement
- Underwater target detection
