90 kHz distance sensing in a lightweight format

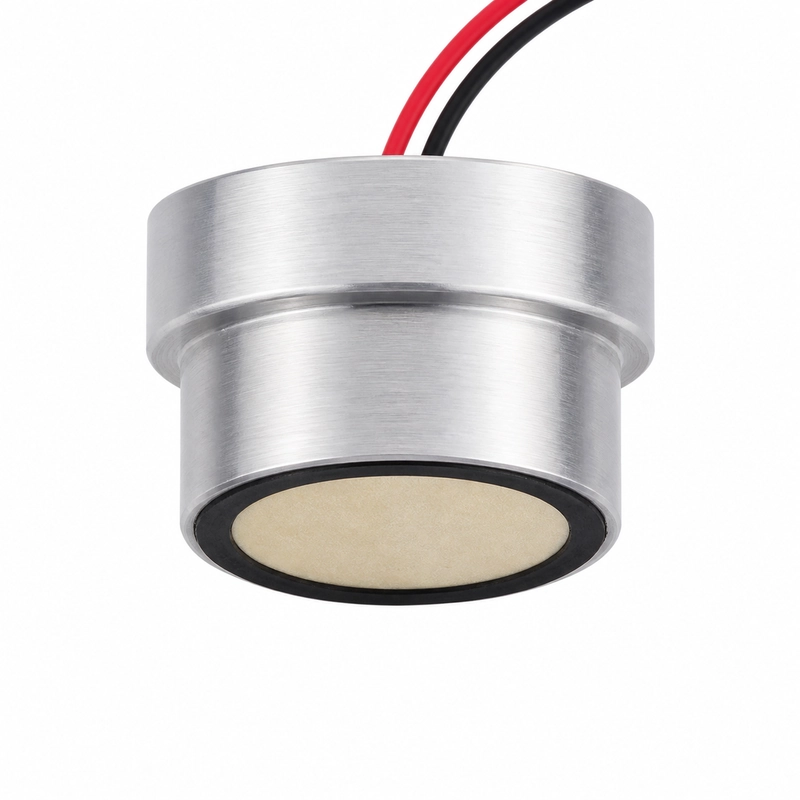

The BBDM-90KR5M is an air ultrasonic distance transducer with a 90 kHz center frequency and a reference range of 0.3 to 5 m. Its specified half-power beam angle at -3 dB is 11.5° with a tolerance of ±10%.
The 23 g ±5% transducer uses 8.5 cm leads and is intended for automation proximity detection, short-range positioning, counting and target detection, and compact level measurement. It carries an IP68 rating and operates from -40 to +80 °C.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBDM-90KR5M |
| Center frequency | 90 kHz ±5% |
| Recommended range | 0.3 to 5 m |
| Minimum impedance | 500 Ω ±20% |
| Capacitance | 1,300 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage below 600 Vpp |
| Operating temperature | -40 to +80 °C |
| Pressure rating | Up to 3 kgf or 0.3 MPa |
| Half-power beam angle at -3 dB | 11.5° ±10% |
| Housing material | 7075 |
| Mounting | See dimensional drawing |
| Protection rating | IP68 |
| Weight | 23 g ±5% |
| Cable length | 8.5 cm |
Specified uses
- Automation proximity detection
- Short-range positioning
- Counting and target detection
- Compact level measurement
Information for equipment integration
Specify the operating medium and temperature range, measuring distance or acoustic path, target size and surface condition, available mounting space and interface dimensions, operating pressure, and protection requirements. The drive and receive electronics, cable arrangement and connection method must also be defined for the equipment.
