Compact 80 kHz transducer for short-range measurements

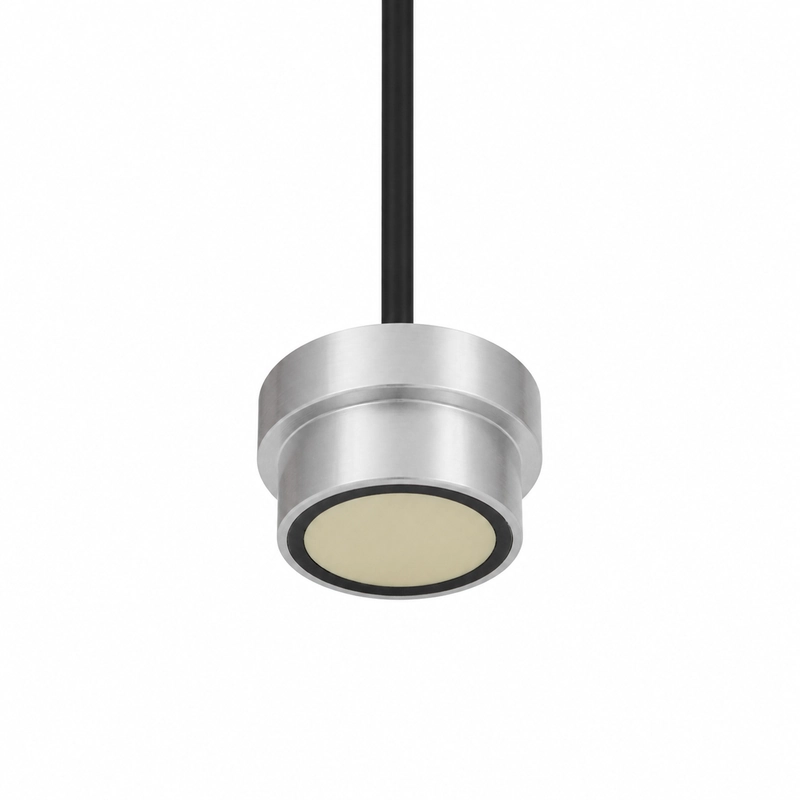

The BBDM-80KR5M is an air ultrasonic distance transducer with an 80 kHz center frequency and a documented reference range of 0.3 to 5 m. Its half-power beam angle at -3 dB is 11.5°, with a tolerance of ±10%.
At 25 g ±5% with a 25 cm cable, the model is specified for automation proximity detection, short-range positioning, counting and target detection, and compact level measurement. It operates from -40 to +80 °C and is rated IP68.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBDM-80KR5M |
| Center frequency | 80 kHz ±5% |
| Recommended range | 0.3 to 5 m |
| Minimum impedance | 280 Ω ±20% |
| Capacitance | 1,600 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage below 600 Vpp |
| Operating temperature | -40 to +80 °C |
| Pressure rating | Up to 3 kgf or 0.3 MPa |
| Half-power beam angle at -3 dB | 11.5° ±10% |
| Housing material | 7075 |
| Mounting | See dimensional drawing |
| Protection rating | IP68 |
| Weight | 25 g ±5% |
| Cable length | 25 cm |
Documented applications
- Automation proximity detection
- Short-range positioning
- Counting and target detection
- Compact level measurement
Inputs for product selection
Selection should consider the operating medium and temperature range, required measuring distance or acoustic path, target size and surface condition, mounting space and interface dimensions, pressure, and protection requirements. The drive and receive electronics, cable and connection method also need to be specified.
