Point-level sensing for alarms and pump protection

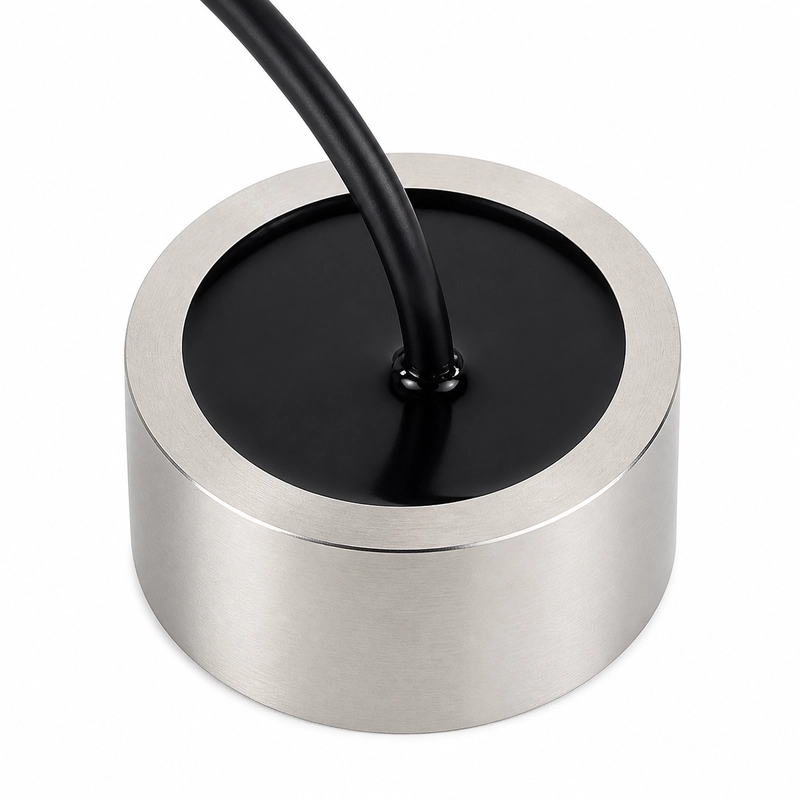

The BBDM-2P5M-LS is a 2.5 MHz ultrasonic transducer for liquid level switch systems. It is intended for high- and low-level alarms, detection of liquid presence or absence, pump protection, and level control in industrial equipment.
Its beamwidth is specified as a 0.6° half-power angle at -3 dB. The transducer also provides IP68 protection, operates from -20 to +60 °C, and is rated for pressure up to 10 kgf or 1 MPa.
Electrical and operating data
| Parameter | Specification |
|---|---|
| Model | BBDM-2P5M-LS |
| Center frequency | 2.5 MHz ±5% |
| Minimum impedance | 15 Ω ±20% |
| Capacitance | 33,000 pF ±20% at 1 kHz |
| Operating voltage | Peak voltage below 120 Vpp |
| Operating temperature | -20 to +60 °C |
| Pressure rating | Up to 10 kgf or 1 MPa |
| Beamwidth | 0.6° half-power angle at -3 dB |
| Housing material | Stainless steel |
| Protection rating | IP68 |
Applications
- High- and low-level alarms
- Liquid presence or absence detection
- Pump protection
- Level control in industrial equipment
