Medium-range detection with broader horizontal coverage

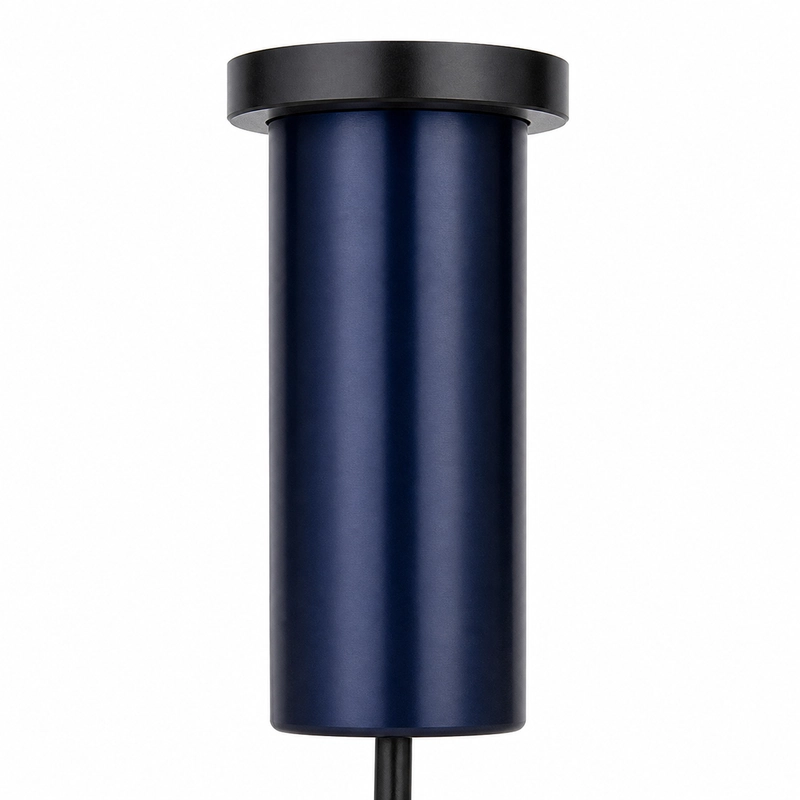

The BBDM-29KR6M is an air-coupled ultrasonic distance transducer with a 29 kHz center frequency and a reference range of 0.5 to 6 m. It can be evaluated for tank and vessel level measurement, industrial equipment ranging, vehicle and machinery collision avoidance, security systems and area monitoring.
The specified -3 dB half-power angle is 18.5 degrees +/-10%. This broader field increases the area exposed to ultrasound, while structures and surfaces within the field may return unwanted echoes.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBDM-29KR6M |
| Center frequency | 29 kHz +/-5% |
| Recommended range | 0.5-6 m |
| Minimum impedance | 2,800 ohm +/-20% |
| Capacitance | 1,900 pF +/-20% at 1 kHz |
| Operating voltage | Peak voltage below 1,500 Vpp |
| Operating temperature | -40 to +80 degrees C |
| Pressure rating | Up to 3 kgf or 0.3 MPa |
| Beam characteristic | -3 dB half-power angle: 18.5 degrees +/-10% |
| Protection rating | IP68 |
| Weight | 207 g |
| Cable length | 22 cm |
Coverage and near-distance behavior
The lower limit of the reference range is 0.5 m. Across the 6 m span, vessel walls, protective guards and machine frames within the expanding acoustic field can generate echoes. A broad field supports area coverage, while a smaller or angled target may return less energy to the receiver.
Electrical interface
The electrical interface data includes a 2,800-ohm minimum impedance, 1,900 pF capacitance at 1 kHz and a peak-voltage limit below 1,500 Vpp.
