Thirty-metre reference range with a defined electrical load

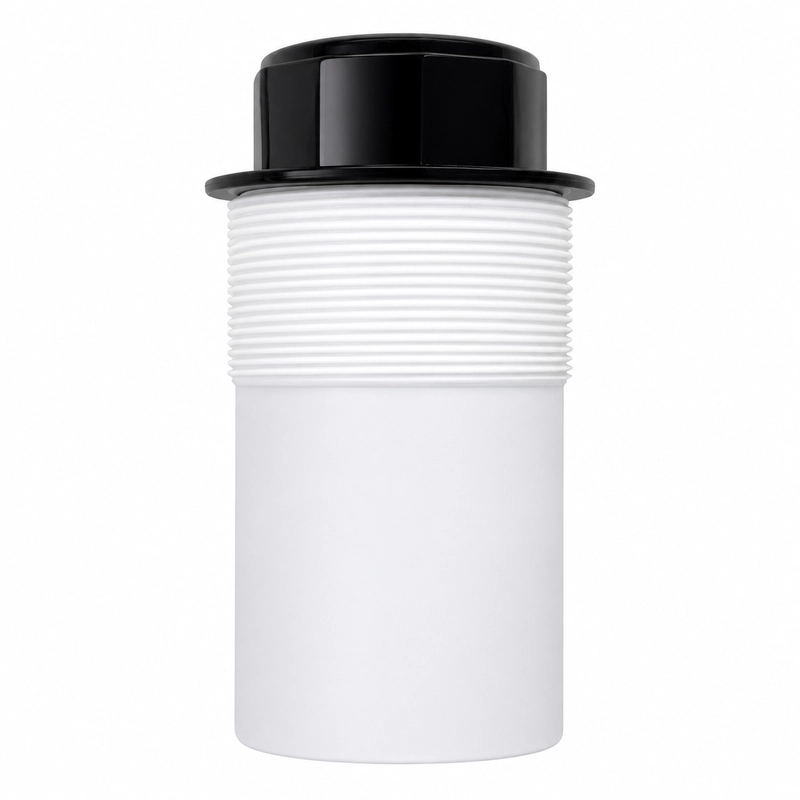

The BBDM-22KR30M-B is an air-coupled ultrasonic distance transducer with a 22 kHz center frequency and a reference range of 1.0 to 30 m. It is intended for large-tank level monitoring, industrial distance measurement, collision avoidance, area monitoring and long-range target detection.
The listed electrical load is a 400-ohm minimum impedance with 9,500 pF capacitance at 1 kHz.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBDM-22KR30M-B |
| Center frequency | 22 kHz +/-5% |
| Recommended range | 1.0-30 m |
| Minimum impedance | 400 ohm +/-20% |
| Capacitance | 9,500 pF +/-20% at 1 kHz |
| Operating voltage | Peak voltage below 1,500 Vpp |
| Operating temperature | -40 to +80 degrees C |
| Pressure rating | Up to 3 kgf or 0.3 MPa |
| Beam characteristic | -3 dB half-power angle: 13 degrees +/-10% |
| Housing material | PTFE |
| Protection rating | IP68 |
| Weight | 1,290 g +/-5% |
Far-range echo conditions
The 30 m figure is a reference value. Target size and inclination, atmospheric loss, temperature gradients and obstructions within the 13-degree field affect the received echo. The lower limit of the reference range is 1 m.
