Compact sensing for short acoustic paths

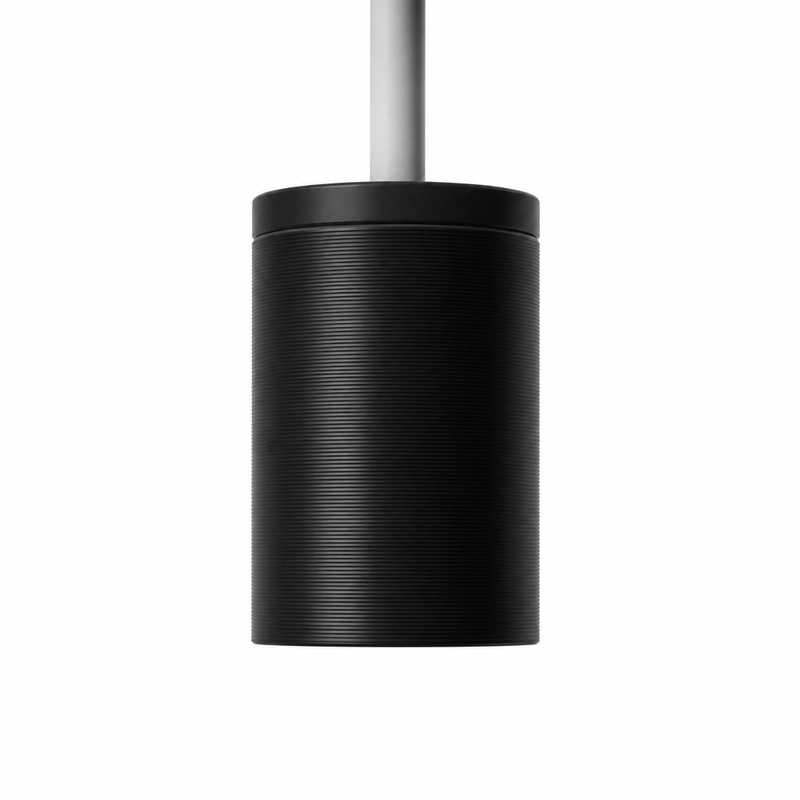

The BBDM-200KR1P5M is an air-coupled ultrasonic transducer for short-range distance and presence sensing. Its 200 kHz center frequency, 0.10-1.5 m reference range and 8 g mass suit compact automation assemblies used for proximity detection, positioning, counting or level measurement.
The specified -3 dB half-power angle is 8 degrees +/-10%. This narrow field can help isolate a small target region, provided the transducer axis and target surface are aligned.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBDM-200KR1P5M |
| Center frequency | 200 kHz +/-5% |
| Recommended range | 0.10-1.5 m |
| Minimum impedance | 1,005 ohm +/-20% |
| Capacitance | 730 pF +/-20% at 1 kHz |
| Operating voltage | Peak voltage below 750 Vpp |
| Operating temperature | -40 to +80 degrees C |
| Pressure rating | Up to 3 kgf or 0.3 MPa |
| Beam characteristic | -3 dB half-power angle: 8 degrees +/-10% |
| Protection rating | IP68 |
| Weight | 8 g +/-5% with 22 cm cable |
Target alignment and mounting
A narrow beam reduces off-axis coverage as well as unwanted exposure. Target size, surface angle and positional tolerance must therefore be assessed throughout the equipment’s motion envelope.
