Product Overview

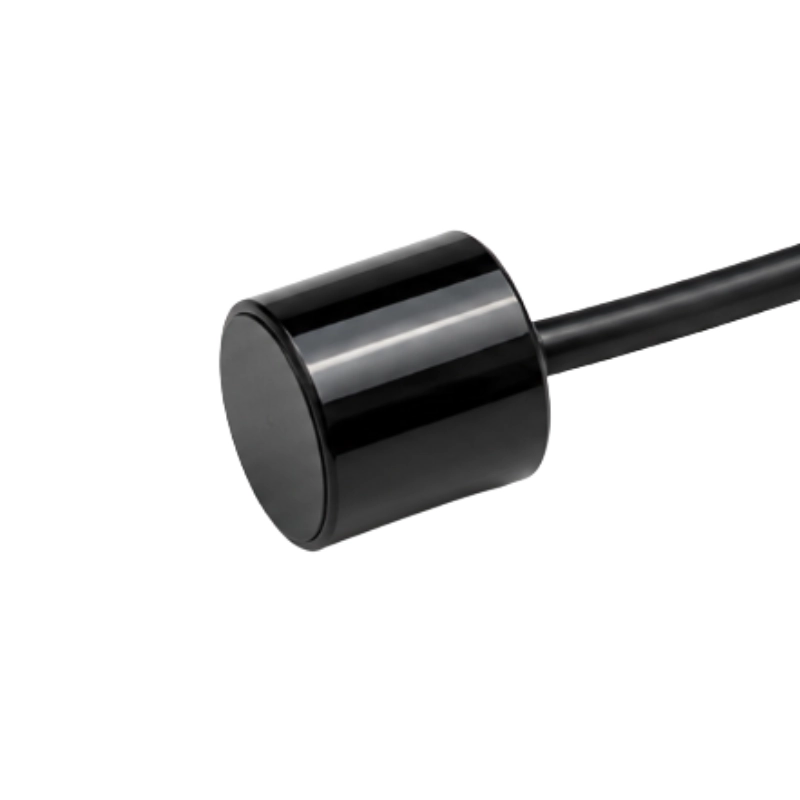

The BBUA-H100K is a 5–100 kHz wideband hydrophone for underwater acoustic reception. It integrates a 40 dB preamplifier and provides omnidirectional response. Its upper frequency limit reaches 100 kHz, making it suitable for marine oil and gas exploration, seabed mapping, pipeline leak detection, geological prospecting, and general underwater acoustic monitoring.
Key Features
- 5–100 kHz broadband response
- Sound pressure sensitivity: -180 ±1.0 dB re 1 V/µPa
- Nominal voltage sensitivity: 1 mV/Pa
- Built-in 40 dB preamplifier
- Omnidirectional response
- Dynamic range: ±1000 Pa
- Nonlinearity: <0.1%
- Operating depth: <100 m
- Operating temperature: -40–85 °C
Typical Applications
- Marine oil and gas exploration
- Seabed mapping
- Pipeline leak detection
- Geological prospecting
- Marine aquaculture
- Underwater acoustic monitoring
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BBUA-H100K |
| Frequency Range | 5–100 kHz |
| Dynamic Range | ±1000 Pa |
| Sound Pressure Sensitivity | -180 ±1.0 dB re 1 V/µPa |
| Frequency Response | -180 ±1.0 dB re 1 V/µPa |
| Nominal Voltage Sensitivity | 1 mV/Pa |
| Sensitivity Change with Temperature | <0.01%/°C |
| Nonlinearity | <0.1% |
| Noise Resolution | Approx. 60 dB re µPa/√Hz |
| Internal Voltage Gain | 40 dB |
| Output Swing | 1 Vppk |
| Current Consumption | 4 mA |
| Insulation Resistance | >50 GΩ |
| Directionality | Omnidirectional |
| Operating Depth | <100 m |
| Operating Temperature | -40–85 °C |
Absolute Maximum Ratings
| Parameter | Rating |
|---|---|
| Supply Voltage | 20 V |
| Storage Temperature | -40–100 °C |
| Maximum Operation Depth | 100 m |
| Survival Depth | 400 m |
Pin Configuration
| Pin | Color | Function |
|---|---|---|
| Pin 1 | Yellow | Output |
| Pin 2 | Red | VDD |
| Pin 3 | Black | GND |
Test Conditions
- Ambient temperature: 25 °C
- VDD: 8 V
- GND: 0 V
Dimensional Data Note
The dimensional and weight fields in the source document are internally unclear, so no formal package dimensions or weight are published here pending confirmation.
