Product Overview

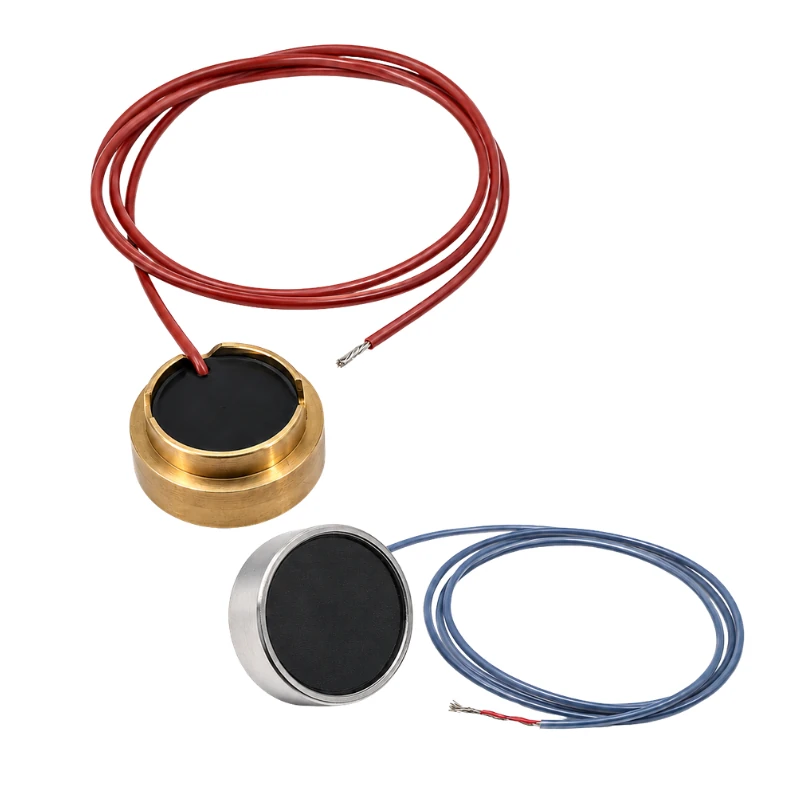

BBMU-BS is a high-frequency, broadband, focused single-element ultrasonic transducer for mechanical sector-scan B-mode probes. It can also be used independently for other ultrasonic applications.
Models are available at 3.5 MHz, 5 MHz, and 10 MHz, with customization for acoustic design, installation space, and interface requirements.
Applications
- Mechanical sector-scan B-mode probes
- Abdominal B-mode scanning probes (3.5 MHz and 5 MHz)
- Ophthalmic B-mode scanning probes (10 MHz)
- Medical ultrasound imaging systems
- Customized single-element ultrasonic probes
Technical Specifications
| Parameter | 3.5M | 5M | 10M |
|---|---|---|---|
| Operating frequency | 3.5 MHz ±10% | 5 MHz ±10% | 10 MHz ±10% |
| Relative bandwidth | >60% | >60% | >70% |
| Relative sensitivity | >-16 dB | >-20 dB | >-32 dB |
| Echo pulse width | <1.1 μs | <0.7 μs | <0.35 μs |
| Focal length | 70 mm | 40 mm | 25 mm |
| Focal spot diameter | Φ 2.2 mm | Φ 1.5 mm | Φ 1.2 mm |
| Primary application | Abdominal B-mode scanning probe | Abdominal B-mode scanning probe | Ophthalmic B-mode scanning probe |
| Operating mode | Single pulse | Single pulse | Single pulse |
| Transducer type | Single element | Single element | Single element |
Customization Options
- Operating frequency
- Housing dimensions
- Mounting structure
- Cable and connector
