Underwater ranging and depth measurement

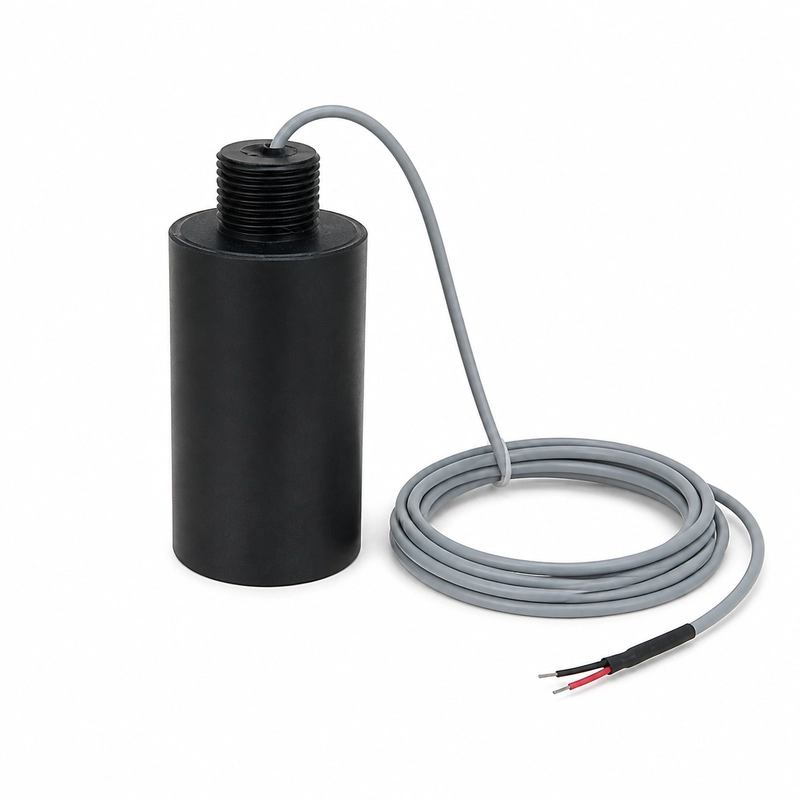

The BBDM-D12K is a 12 kHz ultrasonic transducer for underwater ranging and depth measurement. Its specified reference range is 10000 m. Documented applications also include obstacle avoidance for underwater robots, distance measurement in tanks and water bodies, and underwater target detection.
Horizontal acoustic coverage
The acoustic field is horizontally omnidirectional. This radiation pattern can be considered when defining the measurement geometry, target coverage, transducer position and required acoustic path.
Operating specifications
| Parameter | Specification |
|---|---|
| Model | BBDM-D12K |
| Center frequency | 12 kHz ±5% |
| Recommended range | 10000 m |
| Operating temperature | -40 to +80°C |
| Pressure rating | ≤10 kgf or 1 MPa |
| Acoustic field | Horizontally omnidirectional |
| Protection rating | IP68 |
Applications
- Underwater ranging and depth measurement
- Underwater robot obstacle avoidance
- Tank and water-body distance measurement
- Underwater target detection
System selection
Selection should account for the operating medium and temperature, required distance or acoustic path, target size and surface condition, available installation space, operating pressure, ingress protection, and the drive and receive electronics.
