100 kHz distance sensing in air

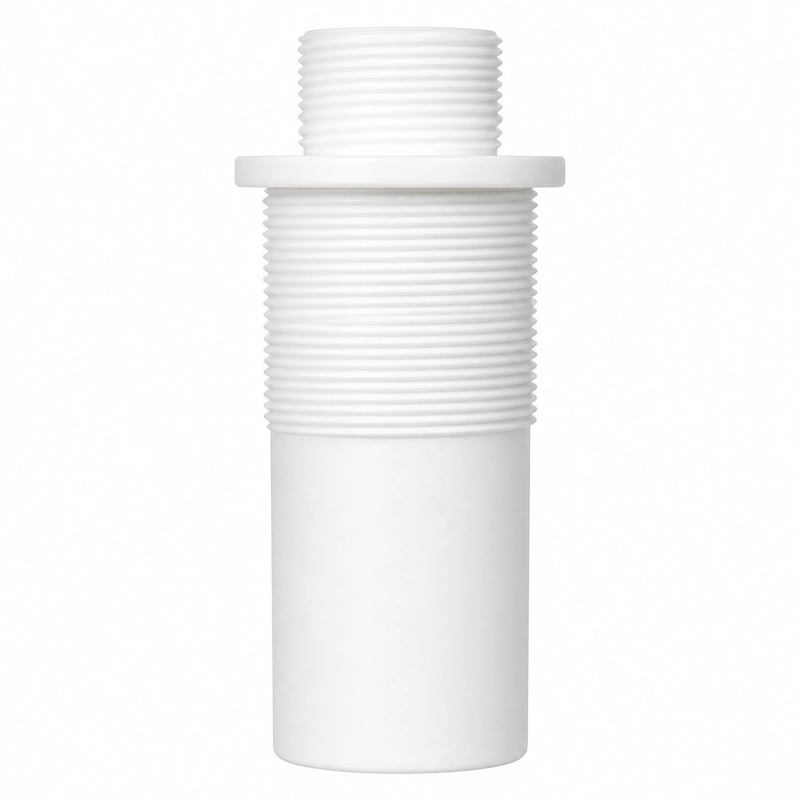

The BBDM-100KR1P5M is an air-coupled ultrasonic transducer for short-range distance and presence sensing. Its 100 kHz center frequency and reference range of 0.15 to 1.5 m suit automation equipment that needs proximity detection, short-range positioning, object counting or compact level measurement.
A PTFE housing, IP68 protection rating and specified pressure limit of 0.3 MPa support integration where enclosure material and environmental sealing are important. The transducer weighs 570 g +/-5% with a 10 m cable.
Technical specifications
| Parameter | Specification |
|---|---|
| Model | BBDM-100KR1P5M |
| Center frequency | 100 kHz +/-5% |
| Recommended range | 0.15-1.5 m |
| Minimum impedance | 1,300 ohm +/-20% |
| Capacitance | 2,000 pF +/-20% at 1 kHz |
| Operating voltage | Peak voltage below 800 Vpp |
| Operating temperature | -40 to +80 degrees C |
| Pressure rating | Up to 3 kgf or 0.3 MPa |
| Housing material | PTFE |
| Protection rating | IP68 |
| Weight | 570 g +/-5% with 10 m cable |
Application fit
- Proximity detection in automated equipment
- Short-range positioning
- Counting and target detection
- Compact level measurement
The stated range is a reference value rather than a guarantee for every target. Target size, surface angle, acoustic reflectivity, air conditions and the drive and receive electronics all affect the usable measuring range.
