Product Overview

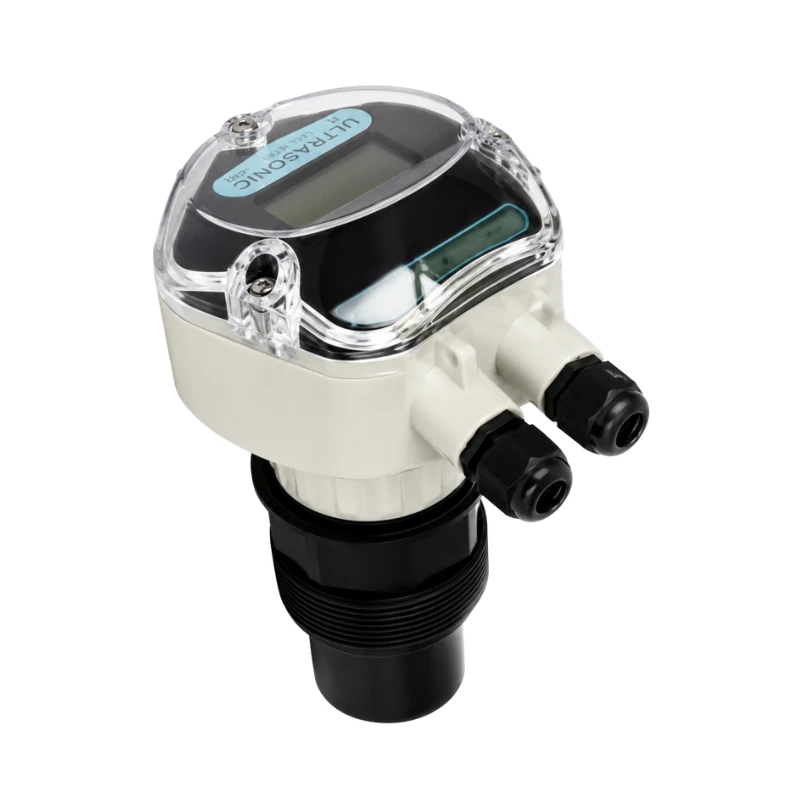

BBULM-T uses non-contact ultrasonic technology to measure the distance between a top-mounted sensor and the surface of a liquid or bulk solid. The measured distance can be converted into level, material level, or distance data. It is suitable for water and wastewater treatment, agricultural irrigation, industrial tanks, and bulk materials such as cement and plaster.
Integrated and split configurations are available. Measurement data can be viewed locally and transmitted to telemetry, remote monitoring, and automation systems.
Key Features
- Top-mounted non-contact measurement
- Suitable for liquids and bulk solids
- Measuring range up to 60 m
- Integrated and split configurations
- Local display
- RS485 standard output
- Optional 4–20 mA, 0–10 V, and communication interfaces
- IP68 sensor protection
- Designed for outdoor industrial environments
Available Configurations
| Configuration | Construction | Description |
|---|---|---|
| Integrated | Sensor and control unit combined | Compact configuration for direct installation at the measuring point |
| Split | Sensor separated from the control box | Supplied with a 10 m sensor cable as standard for remote display or wiring |
Technical Specifications
| Parameter | Specification |
|---|---|
| Measured media | Liquids and bulk solids |
| Measuring range | 30 to 60,000 mm |
| Accuracy | 0.5% to 1.0% |
| Display resolution | 1.5 mm or better |
| Power supply | 10 to 28 VDC |
| Optional power supply | 100 to 230 VAC, 50 Hz |
| Standard output | RS485 |
| Optional analog outputs | 4–20 mA, 0–10 V |
| Optional communications | LoRaWAN, NB-IoT, GPRS, 3G, 4G, M-BUS, Bluetooth, Wi-Fi |
| Sensor mounting | Threaded or other mounting interfaces |
| Sensor protection rating | IP68 |
| Transmitter protection rating | IP61 |
| Operating temperature | -20 to +60 °C |
| Storage temperature | -45 to +85 °C |
| Operating humidity | 5% to 95% |
| Galvanic isolation | Supported |
Typical Applications
- Level monitoring in water tanks, basins, and industrial vessels
- Water and wastewater treatment
- Agricultural irrigation and water-supply systems
- Material-level measurement for cement, plaster, and other bulk solids
- High- and low-level alarms
- Telemetry and remote data monitoring
