400 kHz sensing for fish finding and depth sounding

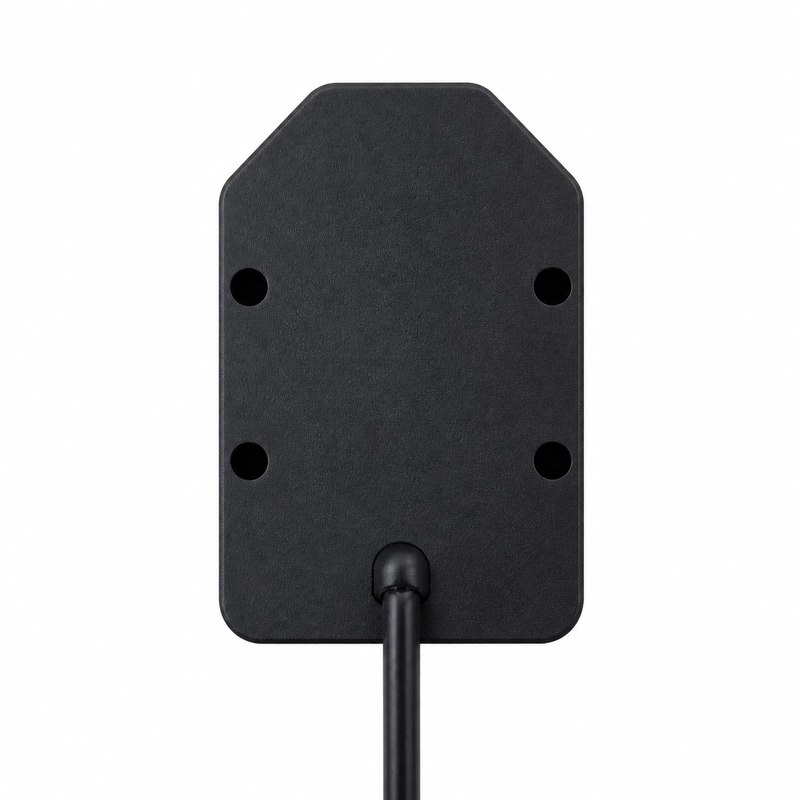

The BBUA-F400K is an underwater ultrasonic transducer specified at a center frequency of 400 kHz ±5%. Its 0.3 to 40 m reference range supports fish detection and marine depth sounding over short and medium acoustic paths.
Operating envelope
The transducer is rated for operation from -40 to +80°C. The supplied data states a pressure limit of ≤10 kgf or 1 MPa and an IP68 protection rating for underwater integration.
Technical specifications
| Model | BBUA-F400K |
|---|---|
| Center frequency | 400 kHz ±5% |
| Recommended range at 400 kHz | 0.3–40 m |
| Operating temperature | -40 to +80°C |
| Pressure rating | ≤10 kgf or 1 MPa |
| Protection rating | IP68 |
Application areas
- Fish detection
- Marine depth sounding
- Underwater target search
- Fisheries acoustics equipment
