Product Overview

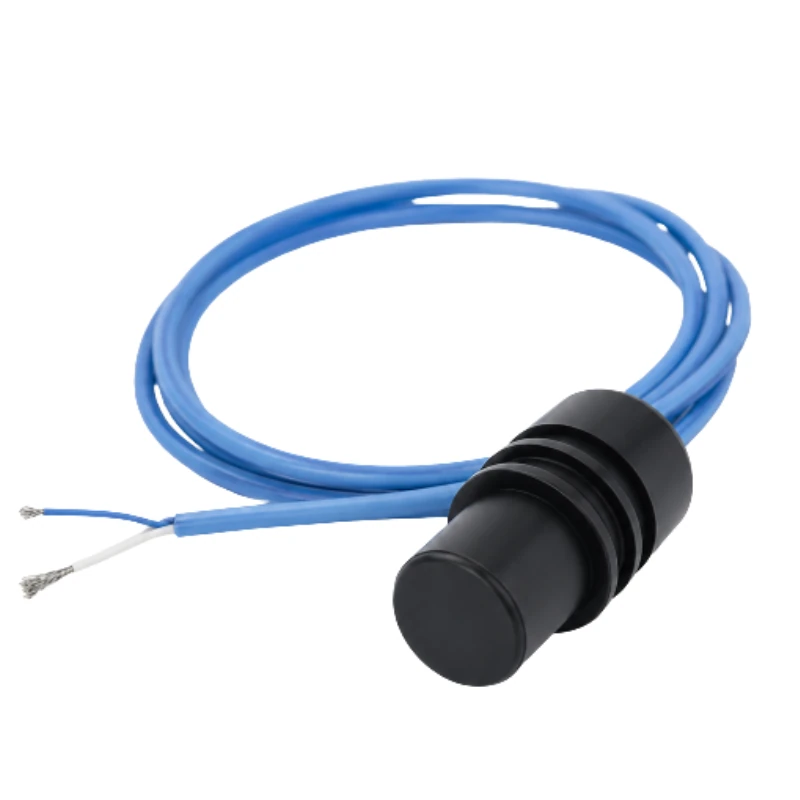

BBMU-LS provides ultrasonic transmission and echo reception for liver stiffness measurement equipment. Multiple center frequencies and active diameters are available for different measurement designs.
The probe combines echo sensitivity, bandwidth, and pulse response for integration into medical ultrasound measurement systems.
Applications
- Liver stiffness measurement equipment
- Liver elasticity assessment systems
- Customized diagnostic ultrasound equipment
Technical Specifications
| Parameter | Specification |
|---|---|
| Center frequency (−6 dB) | 2.5 MHz / 3 MHz / 5 MHz (±0.3 MHz) |
| Active diameter | Φ5 mm / Φ7 mm |
| Pulse-echo sensitivity | ≥−32 dB |
| Echo pulse width (−20 dB) | ≤800 ns |
| Relative bandwidth (−6 dB) | ≥60% |
| Focal length | 50 mm |
Customization Options
- Center frequency
- Active diameter
- Focal length
- Housing and connection
