Product Overview

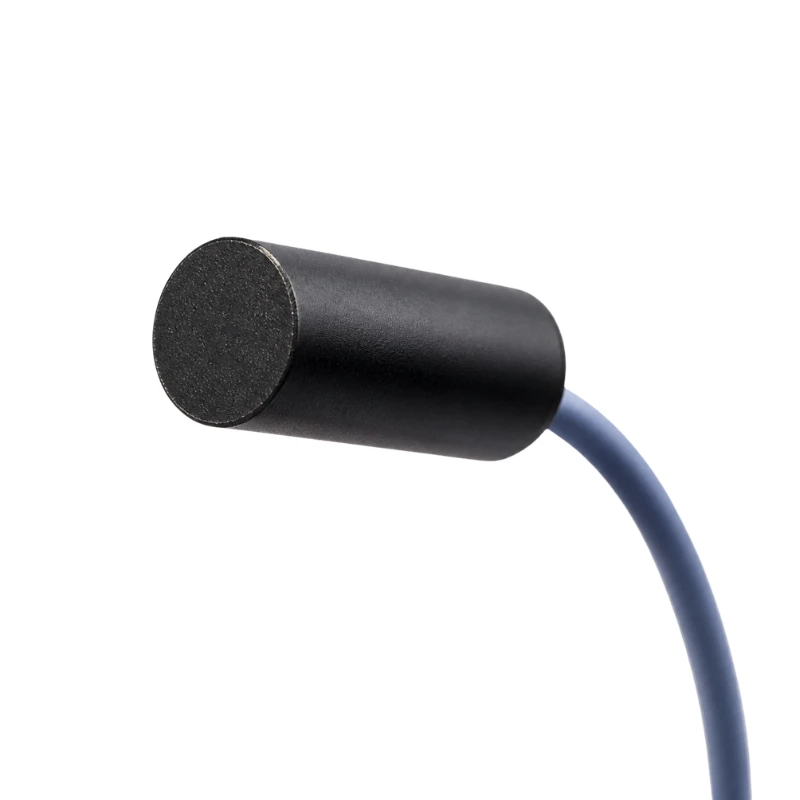

BBMU-END is a compact high-frequency probe for endoscopic and gastroscopic ultrasound systems, intended for intracavitary assemblies with limited installation space.
The probe operates at 12 MHz and uses a miniature coaxial cable, providing a compact form factor, broadband response, and short pulse duration.
Applications
- Endoscopic ultrasound equipment
- Ultrasonic gastroscope assemblies
- Miniature intracavitary ultrasound probes
Technical Specifications
| Parameter | Specification |
|---|---|
| Operating frequency | 12 MHz |
| Overall dimensions | Φ2 × 5 mm |
| Cable | Φ0.65 mm coaxial cable |
| Relative bandwidth (−6 dB) | 70% |
| Pulse width (−20 dB) | 300 ns |
Customization Options
- Probe dimensions
- Cable length
- Connection
- Acoustic matching
